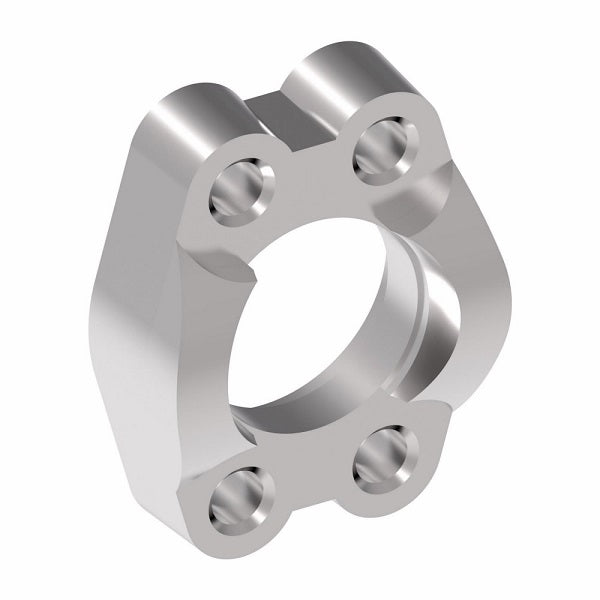

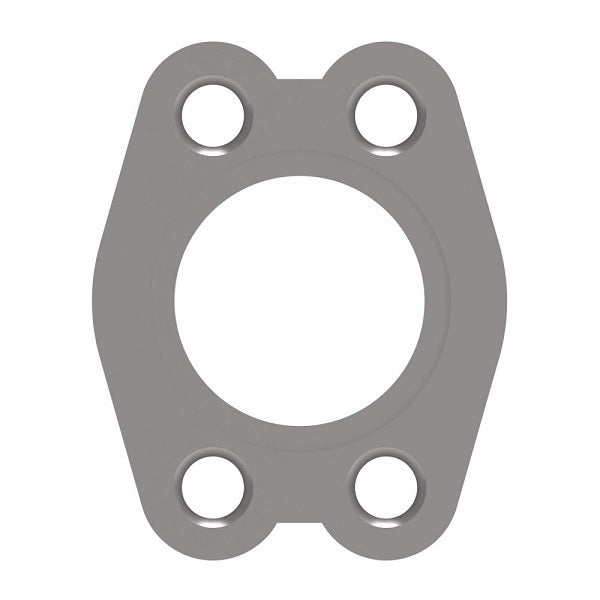

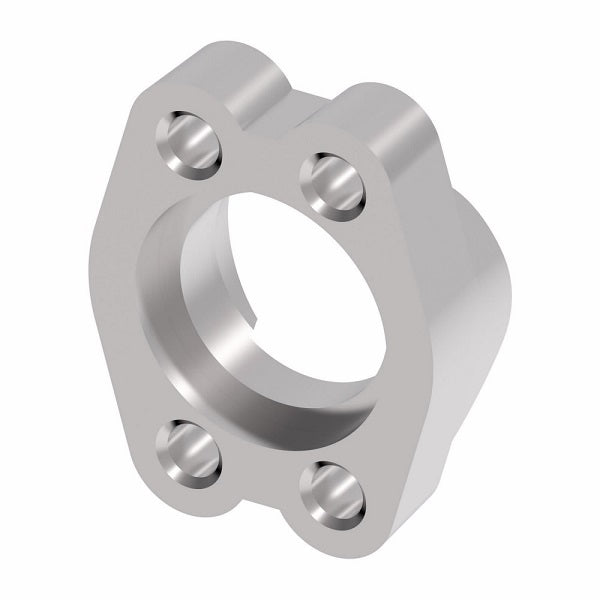

FC2119-40-449 Aeroquip by Danfoss | SAE Code 61 Flange (SAE J518) | 4 Hole | 2-1/2" Flange Size
FC2119-40-449 Aeroquip by Danfoss | SAE Code 61 Flange (SAE J518) | 4 Hole | 2-1/2" Flange Size
FC2119-40-449 Aeroquip by Danfoss | SAE Code 61 Flange (SAE J518) | 4 Hole | 2-1/2" Flange Size

FC2119-40-449 Aeroquip by Danfoss | SAE Code 61 Flange (SAE J518) | 4 Hole | 2-1/2" Flange Size

Sale price$101.90

Aeroquip® by Danfoss
SAE Code 61 Split Flange (SAE J518) - 4 Hole Flange

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $95.79
20–59 $86.62
60+ $76.43
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Ends Configuration:
  • 2-1/2in Code 61 Flange
Material(s):
  • Stainless Steel
Technical Info:
Part Number Nominal Flange
Size		 A B C
(Threaded)
FC2119-12-449 3/4" 1.88" 0.88" 3/8-16
FC2119-16-449 1" 2.06" 1.03" 7/16-14
FC2119-20-449 1-1/4" 2.31" 1.19" 3/8-16
FC2119-24-449 1-1/2" 2.75" 1.41" 1/2-13
FC2119-32-449 2" 3.06" 1.69" 1/2-13
FC2119-40-449 2-1/2" 3.50" 2.00" 1/2-13

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
