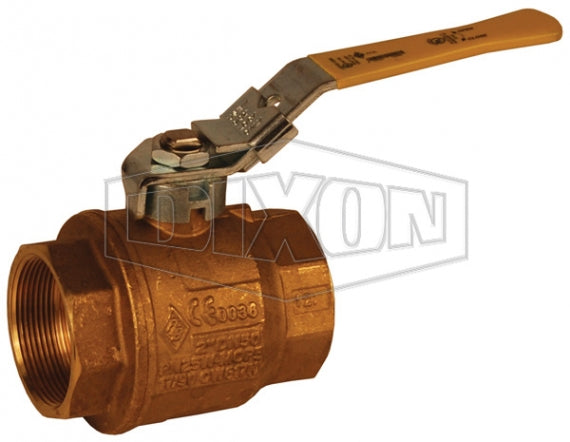

FBVL100 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass

FBVL100 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass

Sale price$75.33

Dixon Valve & Coupling
Imported Ball Valve with Locking Handle | Forged Brass

For control of air, water, oil and gas in hose or pipe lines.
Buy More, Save More!
Quantity Price Each
5–19 $70.81
20–59 $64.03
60+ $56.50
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Forged Brass
Features:
  • Blow-out proof stem.
Materials:
  • PTFE seat, seal, and thrust washer.
  • Chrome-plated brass ball and plated steel handle.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure ratings: 600 PSI WOG; 150 PSI working steam pressure.
Part Number Female NPT x Female NPT Port
FBVL50 1/2" Full
FBVL75 3/4" Full
FBVL100 1" Full
FBVL125 1-1/4" Full
FBVL150 1-1/2" Full
FBVL200 2" Full
FBVL250 2-1/2" Full
FBVL300 3" Full
FBVL400 4" Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
