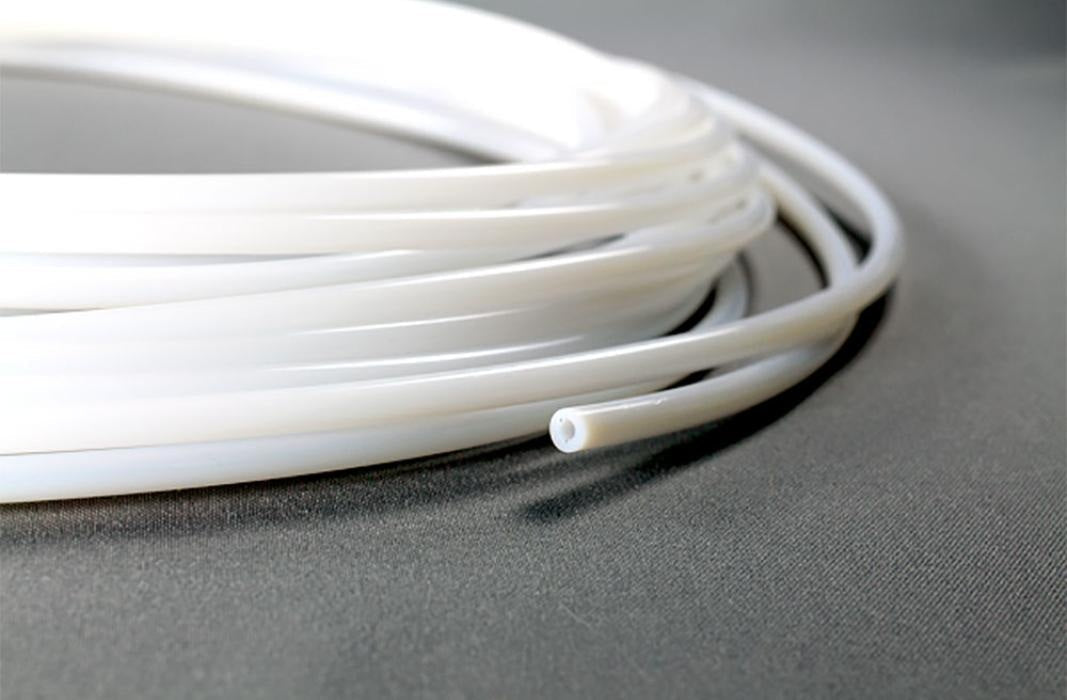

FBTFEF-0125-031-50 Versilon™ by Saint Gobain | PTFE-F | High Temp / High Pressure Flexible Tubing | 1/16" ID x 1/8" OD x .031" Wall | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Versilon® PTFE-F | High Temp / High Pressure Flexible Tubing
Saint-Gobain’s stringent materials quality control, state-of-the-art process control and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon® PTFE-F tubing. Versilon® PTFE-F tubing provides excellent chemical resistance and a good diffusion-resistance. Saint-Gobain’s careful selection of resin type, particle size, temperature and pressure produces smooth and dimensionally stable tubing. Made out of polytetrafluoroethylene resin, PTFE-F tubing has the highest working temperature of any fluoropolymer tubing available today. In order to consistently ensure the quality of our products, we only use raw materials from leading manufacturers. We are able to produce tubes in various dimensions with different material properties according to the customer needs and the corresponding requirements.
1
What is this product used for?
- Food And Beverage Dispensing Equipment
2
What are the key specifications?
Polytetrafluoroethylene Resin (PTFE)
Polytetrafluoroethylene Resin (PTFE)
None
Opaque/Translucent
+500°F (+260°C)
-328°F (-200°C)
Document of Compliance for Regulation (EU) No 10/2011 for specific grades
Document of Compliance for FDA Regulation 21 CFR 177.1550
Not intended as an implant material!
3
What are the main product features?
- Fully fluorinated fluoropolymer tubing.
- Opaque/translucent color.
- Highest working temperature (up to +260°C) out of all fluoropolymer tubing.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Length |
|---|---|---|---|---|---|---|
| FBTFEF-0125-031-50 | 1/16" | 1/8" | 0.031" (1/32") | 1/2" | 197 PSI | 50ft |
| FBTFEF-0187-031-50 | 1/8" | 3/16" | 0.031" (1/32") | - | - | 50ft |
| FBTFEF-0250-031-50 | 3/16" | 1/4" | 0.031" (1/32") | 1" | 92 PSI | 50ft |
| FBTFEF-0250-047-50 | 5/32" | 1/4" | 0.047" (3/64") | 3/4" | 146 PSI | 50ft |
| FBTFEF-0250-062-50 | 1/8" | 1/4" | 0.062" (1/16") | 1/2" | 199 PSI | 50ft |
| FBTFEF-0312-031-50 | 1/4" | 5/16" | 0.031" (1/32") | 1-3/4" | 73 PSI | 50ft |
| FBTFEF-0312-062-50 | 3/16" | 5/16" | 0.062" (1/16") | 1-1/2" | 156 PSI | 50ft |
| FBTFEF-0375-031-50 | 5/16" | 3/8" | 0.031" (1/32") | 2-1/2" | 66 PSI | 50ft |
| FBTFEF-0375-062-50 | 1/4" | 3/8" | 0.062" (1/16") | 1" | 127 PSI | 50ft |
| FBTFEF-0437-031-50 | 3/8" | 7/16" | 0.031" (1/32") | - | - | 50ft |
| FBTFEF-0500-031-50 | 7/16" | 1/2" | 0.031" (1/32") | 4" | 52 PSI | 50ft |
| FBTFEF-0500-062-50 | 3/8" | 1/2" | 0.062" (1/16") | 2" | 93 PSI | 50ft |
| FBTFEF-0625-062-50 | 1/2" | 5/8" | 0.062" (1/16") | 3" | 73 PSI | 50ft |
| FBTFEF-0750-062-50 | 5/8" | 3/4" | 0.062" (1/16") | 6" | 66 PSI | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® PTFE-F Data Sheet
