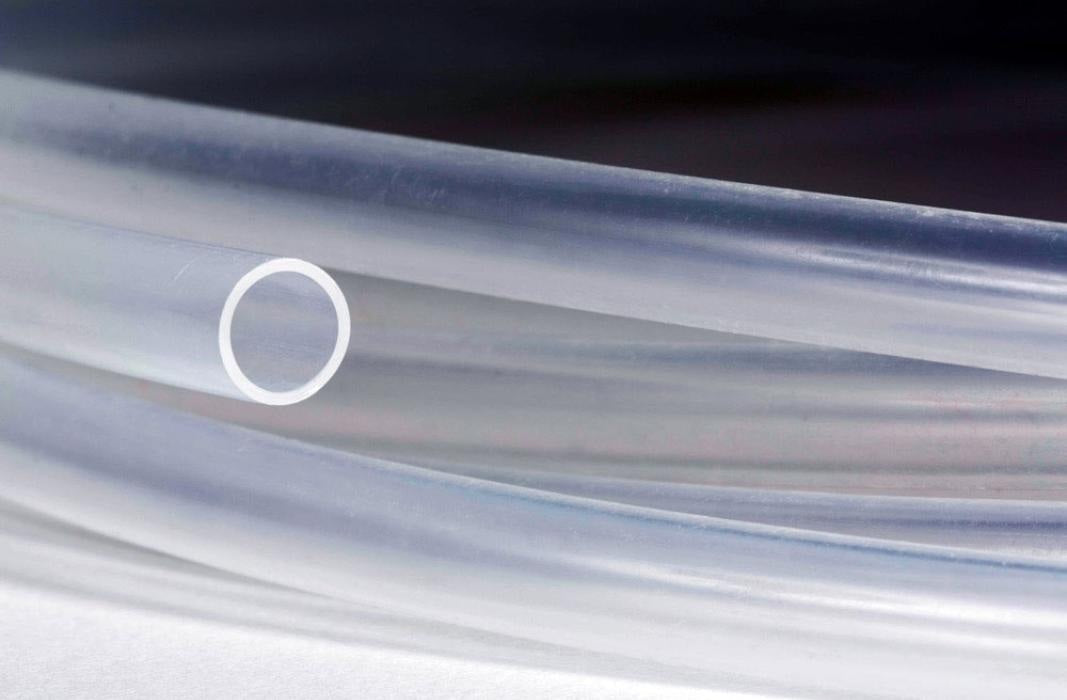

FBPFAF-0250-047-50 Versilon™ by Saint Gobain | PFA-F | High Purity Beverage Dispensing Tubing | 5/32" ID x 1/4" OD x .047" Wall | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Versilon® PFA-F | High Purity Beverage Dispensing Tubing
Saint-Gobain's stringent material quality control, state-of-the-art process control, and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon® PFA-F tubing. Versilon® PFA-F tubing provides excellent chemical resistance and good diffusion-resistance.
1
What is this product used for?
- Food and Beverage Dispensing Equipment
2
What are the key specifications?
PFA-F
PFA-F
None
Natural
+500°F (+260°F)
-328°F (-200°F)
Document of Compliance for Regulation (EU) No 10/2011 for specific grades
Document of Compliance for FDA Regulation 21 CFR 177.1550
Not intended as an implant material!
3
What are the main product features?
- Excellent chemical resistance.
- High resistance to stress cracking.
- Temperature resistant up to +260°C.
- Retains higher mechanical strength at elevated temperatures compared to FEP.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Calculated Burst Pressure at 73 deg. F (PSI) |
Calculated Working Pressure at 73 deg. F (PSI) |
Length |
|---|---|---|---|---|---|---|---|
| FBPFAF-0125-031-50 | 1/16" | 1/8" | 0.031" (1/32") | 1/2" | 1228 PSI | 307 PSI | 50ft |
| FBPFAF-0187-031-50 | 1/8" | 3/16" | 0.031" (1/32") | 1-7/64" | 796 PSI | 199 PSI | 50ft |
| FBPFAF-0250-031-50 | 3/16" | 1/4" | 0.031" (1/32") | 1" | 572 PSI | 143 PSI | 50ft |
| FBPFAF-0250-047-50 | 5/32" | 1/4" | 0.047" (3/64") | 1-21/64" | 908 PSI | 227 PSI | 50ft |
| FBPFAF-0250-062-50 | 1/8" | 1/4" | 0.062" (1/16") | 1/2" | 1236 PSI | 309 PSI | 50ft |
| FBPFAF-0312-031-50 | 1/4" | 5/16" | 0.031" (1/32") | 1-3/4" | 456 PSI | 114 PSI | 50ft |
| FBPFAF-0312-062-50 | 3/16" | 5/16" | 0.062" (1/16") | 1-1/2" | 968 PSI | 242 PSI | 50ft |
| FBPFAF-0375-031-50 | 5/16" | 3/8" | 0.031" (1/32") | 2-1/2" | 400 PSI | 100 PSI | 50ft |
| FBPFAF-0375-062-50 | 1/4" | 3/8" | 0.062" (1/16") | 1" | 800 PSI | 200 PSI | 50ft |
| FBPFAF-0437-031-50 | 3/8" | 7/16" | 0.031" (1/32") | - | - | - | 50ft |
| FBPFAF-0500-031-50 | 7/16" | 1/2" | 0.031" (1/32") | 4" | 292 PSI | 73 PSI | 50ft |
| FBPFAF-0500-062-50 | 3/8" | 1/2" | 0.062" (1/16") | 3-31/32" | 576 PSI | 144 PSI | 50ft |
| FBPFAF-0562-031-50 | 1/2" | 9/16" | 0.031" (1/32") | - | - | - | 50ft |
| FBPFAF-0625-062-50 | 1/2" | 5/8" | 0.062" (1/16") | 3" | 452 PSI | 113 PSI | 50ft |
| FBPFAF-0750-062-50 | 5/8" | 3/4" | 0.062" (1/16") | 8-59/64" | 400 PSI | 100 PSI | 50ft |
| FBPFAF-0875-062-50 | 3/4" | 7/8" | 0.062" (1/16") | - | - | - | 50ft |
| FBPFAF-1000-062-50 | 7/8" | 1" | 0.062" (1/16") | 15-7/8" | 296 PSI | 74 PSI | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® PFA-F Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
