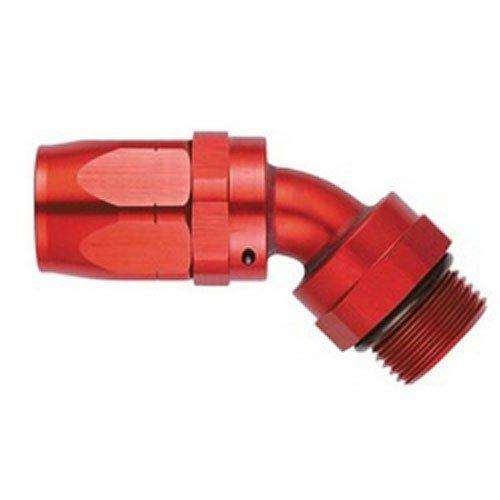

FBM1353 Eaton Aeroquip® -12 Reuseable Swivel ORB 45° Elbow Fitting - 1-1/16-12 Thread - Aluminum

FBM1353 Eaton Aeroquip® -12 Reuseable Swivel ORB 45° Elbow Fitting - 1-1/16-12 Thread - Aluminum

Sale price$89.15
Buy more, save moreDiscounts applied in cart/checkout.
Reusable Aluminum Fittings Features:
  • One-piece design allows for improved flow, eliminates two potential leak points (brazed joints), and significantly improves appearance.
  • Designed to be re-used without damage to the fitting.
  • Easier to install than cutter style, more user friendly.
  • Nipple pilot prevents damage to the inner tube.
  • No seal is broken between nipple and tube when swiveled due to nipple design; ensuring integrity of the seal.
  • Compression style specially designed for performance applications.
Swivel ORB 45° Elbow
Reusable Red Anodized Aluminum Swivel ORB Part Number Hose Size Thread Size
FBM1350 -10 1-1/16-12
FBM1351 -10 7/8-14
FBM1352 -12 7/8-14
FBM1353 -12 1-1/16-12

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Compatible with:

AQP® Racing Hose
StartLite® Racing Hose

Additional Product Data:

Shape:

45 Degree

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 3/4in Reusable Hose End
Material(s):
  • Aluminum

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
