FBA2000 Eaton Aeroquip® -20 AQP® Racing Hose with Stainless Steel Cover
Eaton Aeroquip® High Performance

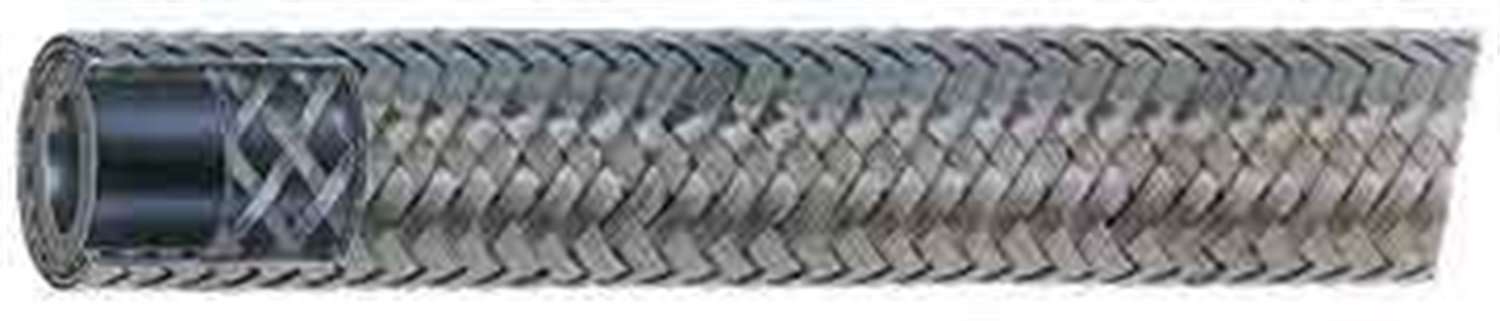

AQP® Racing Hose with Stainless Steel Cover
The most popular racing hose in the market for over 60 years - made in the U.S.A.
AQP Racing Hose is compatible with petroleum and synthetic lubricants, hydrocarbon fuels and liquid engine coolants. It operates at higher temperatures for longer periods. Light and flexible, it is easy to work with, and its stainless steel cover will ensure long-lasting durability.
AQP Racing Hose also features an AQP elastomer inner tube that is resistant to oxidation, the effects of ozone and other various agents present in the air. Changes in physical properties due to shelf aging are nonexistent.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.18 |
| 40–79 | $34.53 |
| 80+ | $30.47 |
Product Data:
500
SPECIFICATIONS
| Application: | Fuel, lube, coolant, air | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | AQP elastomer |
| Reinforcement: | Partial stainless steel wire inner braid reinforcement. | Cover: | Full stainless steel outer braid reinforcement |
| Temperature Range: | Continuous operating temperature from -55°F to +300°F (-49°C to +150°C). | Crimp Fittings: | AQP® Racing Hose Crimp Fittings |
| Reusable Fittings: | AQP® Racing Hose Reusable Fittings |
| Bulk Part Number | Hose Dash Size | Hose ID (in) |
Max. Hose OD (in) |
Max. Operating Pressure (PSI) |
Bend Radius (in) |
Weight Per Foot (lbs) |
Vacuum Service (in/Hg) |
|---|---|---|---|---|---|---|---|
| FBA0400 | -04 | 0.22" | 0.44" | 1000/750 PSI | 2.00" | 0.11 lbs | 21 in/Hg |
| FBA0600 | -06 | 0.34" | 0.55" | 1000/750 PSI | 2.50" | 0.16 lbs | 21 in/Hg |
| FBA0800 | -08 | 0.44" | 0.65" | 1000/750 PSI | 3.50" | 0.17 lbs | 21 in/Hg |
| FBA1000 | -10 | 0.56" | 0.80" | 1000/750 PSI | 4.00" | 0.21 lbs | 28 in/Hg |
| FBA1200 | -12 | 0.69" | 0.94" | 1000/750 PSI | 4.50" | 0.29 lbs | 28 in/Hg |
| FBA1600 | -16 | 0.88" | 1.15" | 750/750 PSI | 5.50" | 0.38 lbs | 28 in/Hg |
| FBA2000 | -20 | 1.13" | 1.41" | 500 PSI | 8.00" | 0.49 lbs | 21 in/Hg |
| FBA2400 | -24 | 1.34" | 1.70" | 50 PSI | 9.00" | 0.80 lbs | 21 in/Hg |
| FBA3200 | -32 | 1.75" | 2.09" | 50 PSI | 12.50" | 0.98 lbs | 15 in/Hg |
Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
