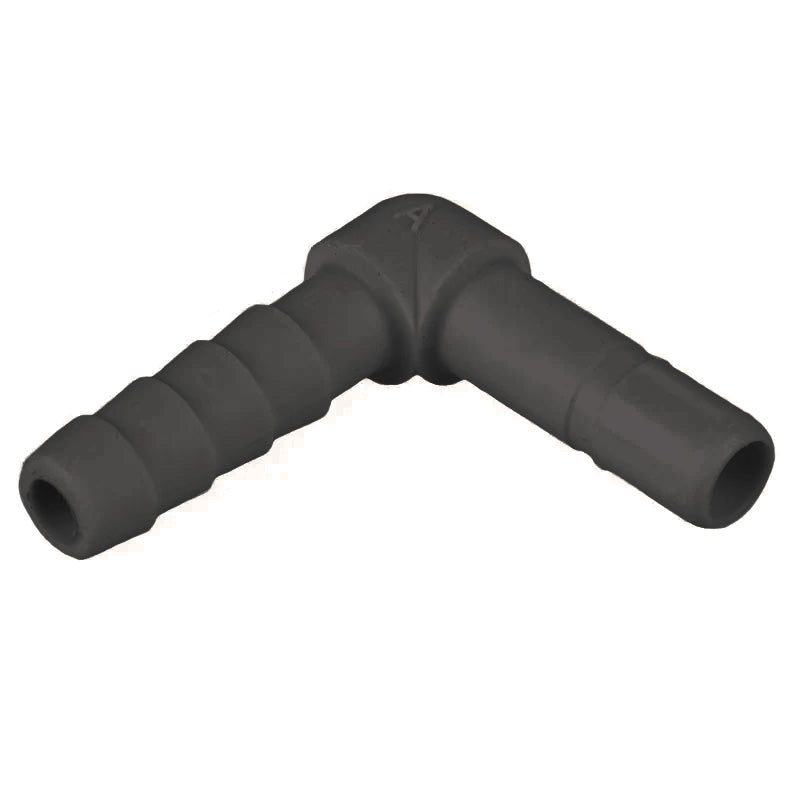

FB6TEB4 by Parker | TrueSeal™ Accessories | 3/8" Tube Size x 1/4" Barb | 90° Elbow | Black | Kynar®
Parker Fluid Connections Division

FB6TEB4 by Parker | TrueSeal™ Accessories | 3/8" Tube Size x 1/4" Barb | 90° Elbow | Black | Kynar®

Minimum Order Quantity: 5 units

Sale price$39.19

by Parker Hannifin
TrueSeal™ Fittings:TEB - Tube Elbow Barb Connector

Product Data:

Brand:
  • TrueSeal™
Series:
  • TEB Series
Shape:

90° Elbow
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal White PPL Black Kynar Tube Stem O.D. Tube I.D. M N Overall Length (L)
    A4TEB4 PP4TEB4 FB4TEB4 1/4" 1/4" .89" 1.00" .140"
    A6TEB4 - FB6TEB4 3/8" 1/4" 1.335" 1.055" .375"
    A6TEB6 PP6TEB6 FB6TEB6 3/8" 3/8" 1.34" 1.21" .250"
    A8TEB8 - - 1/4" 1/4" 1.30" 1.30" .390"
