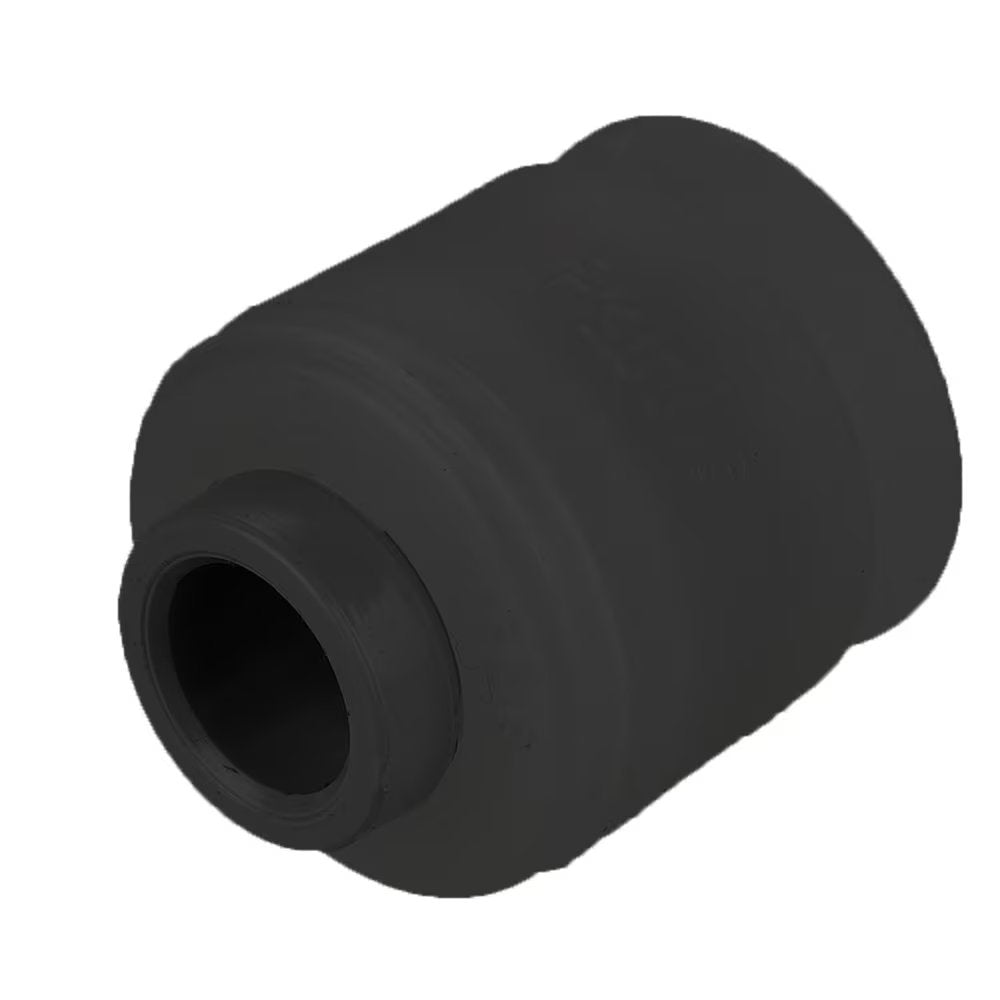

FB4CAP-HBLK by Parker | TrueSeal™ Accessories | 1/4" Push-to-Connect | .77" Length | Cap | Black | Kynar®

FB4CAP-HBLK by Parker | TrueSeal™ Accessories | 1/4" Push-to-Connect | .77" Length | Cap | Black | Kynar®

Sale price$12.05
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal White PPL EPDM Seal Natural Kynar FKM Seal Nom. Tube O.D. Overall Length (L)
A4CAP-MG PP4CAP FB4CAP-HBLK 1/4" .77"
A6CAP-MG PP6CAP - 3.8" .88"

Additional Product Data:

Brand:
  • TrueSeal™
Series:
  • CAP Series
Shape:

No Orientation
