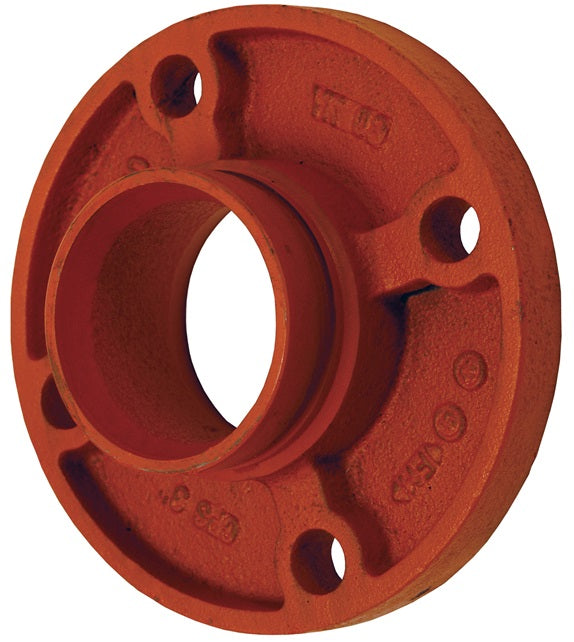

FA60 by Dixon Valve | Series-FA | Flange Adapter | 8 Bolt | 6" Nominal Size | 6.625" Pipe OD | Ductile Iron

FA60 by Dixon Valve | Series-FA | Flange Adapter | 8 Bolt | 6" Nominal Size | 6.625" Pipe OD | Ductile Iron

Sale price$148.55

Dixon Valve
Flange Adapter | Series-FA

Used to connect an ANSI Class 125 and 150 flange to a grooved pipe using a grooved clamp.
Buy More, Save More!
Quantity Price Each
5–19 $139.64
20–59 $126.27
60+ $111.41
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series-FA
Shape:

Straight

Ends Configuration:
  • 6in Grooved End
  • 6in 150# Flange
Features:
  • Provides a rigid one-piece connection that can be disconnected by removing the clamp assembly, assemble to another flange, position bolt heads on the adapter (grooved) side
Material:
  • Ductile iron body with rust inhibiting paint.
Ductile Iron
Part Number		 Nominal
Size		 Pipe
O.D.		 Maximum
Working Pressure
PSI at 70°F (21°C)		 Flange
Dimensions		 Bolts
A B Qty Size
FA20 2" 2.375" 300 PSI 6" 2-3/8" 4 5/8"
FA30 3" 3.500" 300 PSI 7-1/4" 2-3/8" 4 5/8"
FA40 4" 4.500" 300 PSI 8-1/2" 2-3/8" 8 5/8"
FA60 6" 6.625" 300 PSI 11" 2-9/16" 8 3/4"
FA80 8" 8.625" 300 PSI 13-1/4" 3" 8 3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
