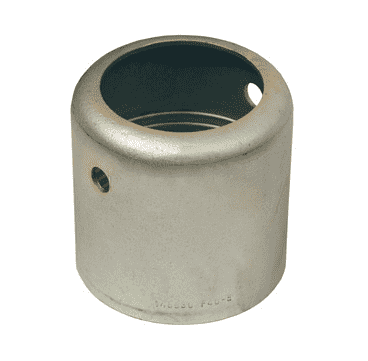

F96-8 Dixon Valve 6" Plated Carbon Steel Style F Standard External Swage Ferrule - Hose OD from 7-53/64" to 7-60/64"
Dixon

F96-8 Dixon Valve 6" Plated Carbon Steel Style F Standard External Swage Ferrule - Hose OD from 7-53/64" to 7-60/64"

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Applications:
  • Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as L.P. gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose.
  • Style F ferrules are used with all standard length External Swage stems: TM, TMR, TP, TPR, TG and TGR styles.
Features:
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
Safety Notes:
  • The selection of ferrules is very important to achieve proper coupling-to-hose assembly.
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
F96-Z* 6" 6-44/64" 6-63/64" 7.6200
F96-1 6" 7" 7-4/64" 7.3400
F96-2 6" 7-5/64" 7-12/64" 7.4400
F96-3 6" 7-13/64" 7-20/64" 10.4250
F96-4 6" 7-21/64" 7-28/64" 7.7650
F96-5 6" 7-29/64" 7-36/64" 10.6250
F96-6 6" 7-37/64" 7-44/64" 8.5650
F96-7 6" 7-45/64" 7-52/64" 11.8120
F96-8 6" 7-53/64" 7-60/64" 12.4000
F96-9 6" 7-61/64" 8" 7.7650
* Requires special stem
