F-KOMX90-0822-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M22X1.5 Female Komatsu JIS 30° Seat Swivel | 90° Elbow | Carbon Steel
Kurt Hydraulics
Komatsu JIS 30° Seat 90° Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $101.95 |
| 20–59 | $92.19 |
| 60+ | $81.35 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Material(s):
Special Properties:

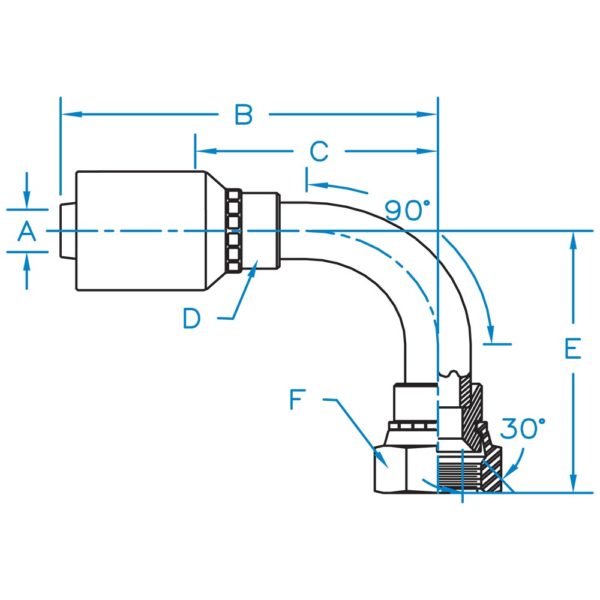

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-KOMX90-0414-K2 | 1/4" | 2.84" | 1.78" | 5/8" | 1.48" | 11/16" | M14 x 1.5 |
| F-KOMX90-0614-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 1.48" | 11/16" | M14 x 1.5 |
| F-KOMX90-0618-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 1.52" | 7/8" | M18 x 1.5 |
| F-KOMX90-0822-K2 | 1/2" | 3.49" | 2.15" | 7/8" | 1.72" | 1-1/16" | M22 x 1.5 |
| F-KOMX90-0824-K2 | 1/2" | 2.99" | 1.65" | 7/8" | 2.25" | 1-1/4" | M24 x 1.5 |
