F-KOMX45-0822-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M221.5 Female Komatsu JIS 30° Seat Swivel | 45° Elbow | Carbon Steel
Kurt Hydraulics
Komatsu JIS 30° Seat 45° Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $98.23 |
| 20–59 | $88.83 |
| 60+ | $78.38 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Material(s):
Special Properties:

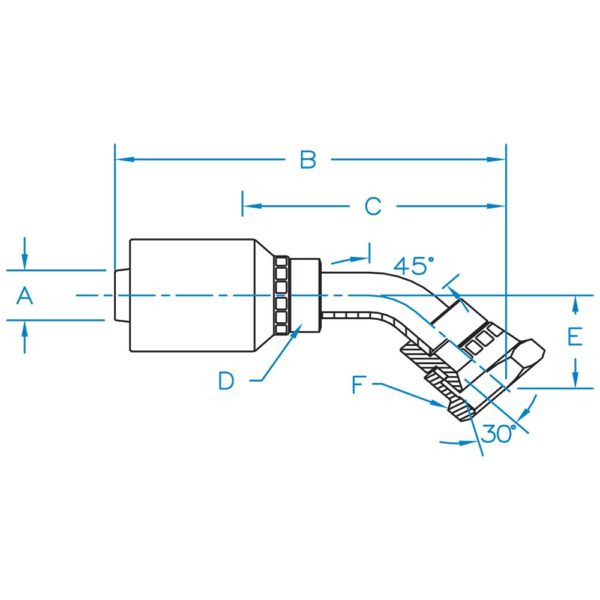

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-KOMX45-0414-K2 | 1/4" | 3.30" | 2.24" | 5/8" | 0.80" | 11/16" | M14 x 1.5 |
| F-KOMX45-0614-K2 | 3/8" | 3.63" | 2.26" | 11/16" | 0.80" | 11/16" | M14 x 1.5 |
| F-KOMX45-0618-K2 | 3/8" | 3.63" | 2.26" | 11/16" | 0.80" | 7/8" | M18 x 1.5 |
| F-KOMX45-0822-K2 | 1/2" | 3.59" | 2.25" | 7/8" | 0.94" | 1-1/16" | M22 x 1.5 |
| F-KOMX45-0824-K2 | 1/2" | 3.86" | 2.52" | 7/8" | 1.04" | 1-1/4" | M24 x 1.5 |
