F-KOMX-10-24 by Kurt Hydraulics | Female Komatsu JIS 30° Seat | Swivel | for 5/8" Hose ID

F-KOMX-10-24 by Kurt Hydraulics | Female Komatsu JIS 30° Seat | Swivel | for 5/8" Hose ID

Sale price$29.67

by Kurt Hydraulics
F-KOMX - Komatsu JIS 30 deg. Seat Female Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $27.89
40–79 $25.22
80+ $22.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Special Properties:
  • Swivel

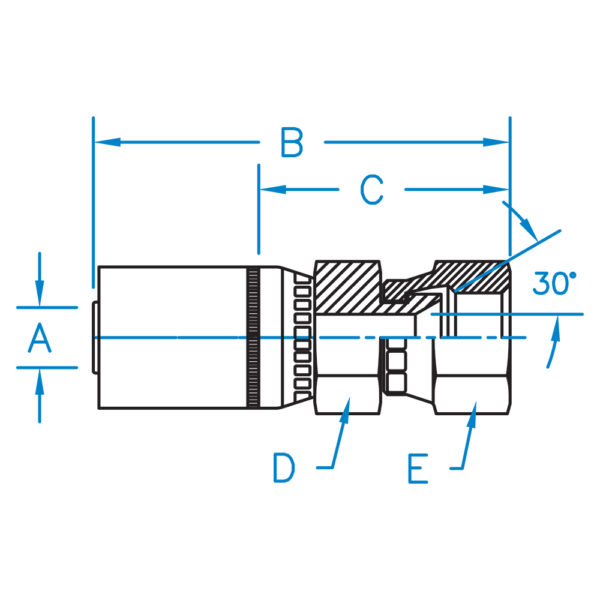

Part Number A B C D E Hose ID
(In)		 Thread
F-KOMX-04-14 0.250 2.548 1.293 9/16 3/4 1/4" M14 X 1.5
F-KOMX-06-18 0.375 2.871 1.371 3/4 15/16 3/8" M18 X 1.5
F-KOMX-08-22 0.500 3.126 1.624 7/8 1-1/16 1/2" M22 X 1.5
F-KOMX-08-24 0.500 N/A N/A N/A N/A 1/2" M24 X 1.5
F-KOMX-10-24 0.625 3.036 1.536 1-1/8 1-3/16 5/8" M24 X 1.5
F-KOMX-12-30 0.750 3.471 1.882 1-1/8 1-1/2 3/4" M30 X 1.5
F-KOMX-16-33 1.000 3.816 2.082 1-3/8 1-5/8 1.000" M33 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
