F-KOMX-04-14-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M14X1.5 Female Komatsu JIS 30° Seat Swivel | Carbon Steel
Kurt Hydraulics
Komatsu JIS 30° Seat Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.05 |
| 40–79 | $33.51 |
| 80+ | $29.57 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Special Properties:

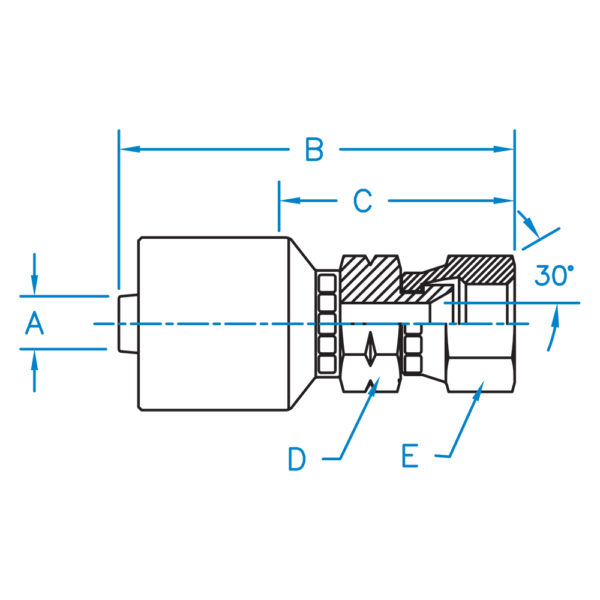

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| F-KOMX-04-14-K2 | 1/4" | 2.27" | 1.21" | 9/16" | 11/16" | M14 x 1.5 |
| F-KOMX-06-14-K2 | 3/8" | 2.48" | 1.11" | 11/16" | 11/16" | M14 x 1.5 |
| F-KOMX-06-18-K2 | 3/8" | 2.52" | 1.15" | 11/16" | 7/8" | M18 x 1.5 |
| F-KOMX-08-22-K2 | 1/2" | 2.63" | 1.29" | 7/8" | 1-1/16" | M22 x 1.5 |
| F-KOMX-08-24-K2 | 1/2" | 2.62" | 1.28" | 7/8" | 1-1/4" | M24 x 1.5 |
