F-JISX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIS 30° | Swivel | for 1" Hose ID

F-JISX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIS 30° | Swivel | for 1" Hose ID

Sale price$74.58

by Kurt Hydraulics
F-JISX-WHP - JIS 30 deg. Female Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $70.11
40–79 $63.39
80+ $55.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

Straight

Special Properties:
  • Swivel

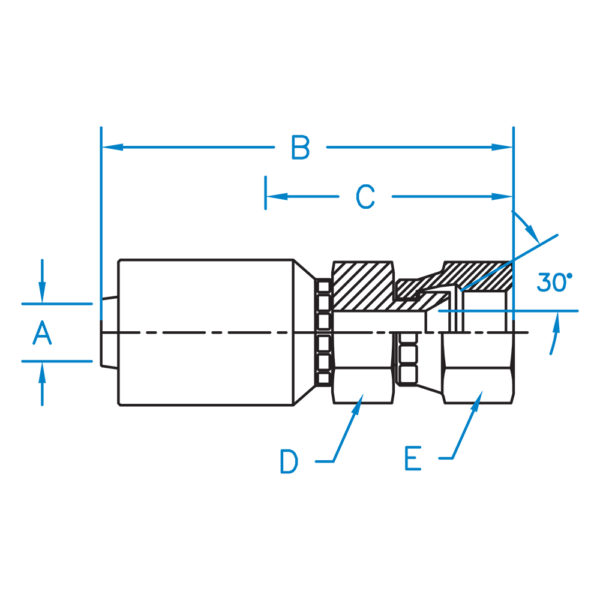

Part Number A B C D E Hose ID
(In)		 Thread
F-JISX-12-12-WHP 0.750 4.06 1.63 1-1/8 1-1/4 3/4" 3/4-14
F-JISX-16-16-WHP 1.000 4.251 1.721 1-3/8 1-1/2 1" 1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
