F-JISX-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Female JIS Swivel | Carbon Steel

F-JISX-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Female JIS Swivel | Carbon Steel

Sale price$29.67

Kurt Hydraulics
JIS 30° Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $27.89
40–79 $25.22
80+ $22.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Female JIS

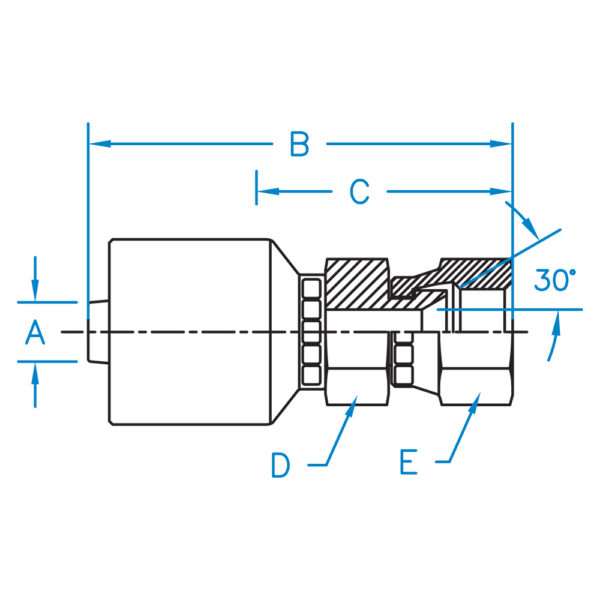

Part Number Hose I.D. (in.) B C D E Thread
F-JISX-04-04-K2 1/4" 2.20" 1.12" 9/16" 3/4" 1/4 – 19
F-JISX-06-06-K2 3/8" 2.62" 1.25" 11/16" 7/8" 3/8 – 19
F-JISX-08-08-K2 1/2" 2.62" 1.28" 7/8" 1" 1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
