F-DL9006-12-18-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 90 Degree Bent Tube | Swivel With O-Ring | for 3/8" Hose ID

F-DL9006-12-18-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 90 Degree Bent Tube | Swivel With O-Ring | for 3/8" Hose ID

Sale price$26.24
by Kurt Hydraulics
F-DL-W - Din Light 24 deg. Seat 90 deg. Bent Tube Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $24.67
40–79 $22.30
80+ $19.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Hose Barb
  • L18 Female DIN

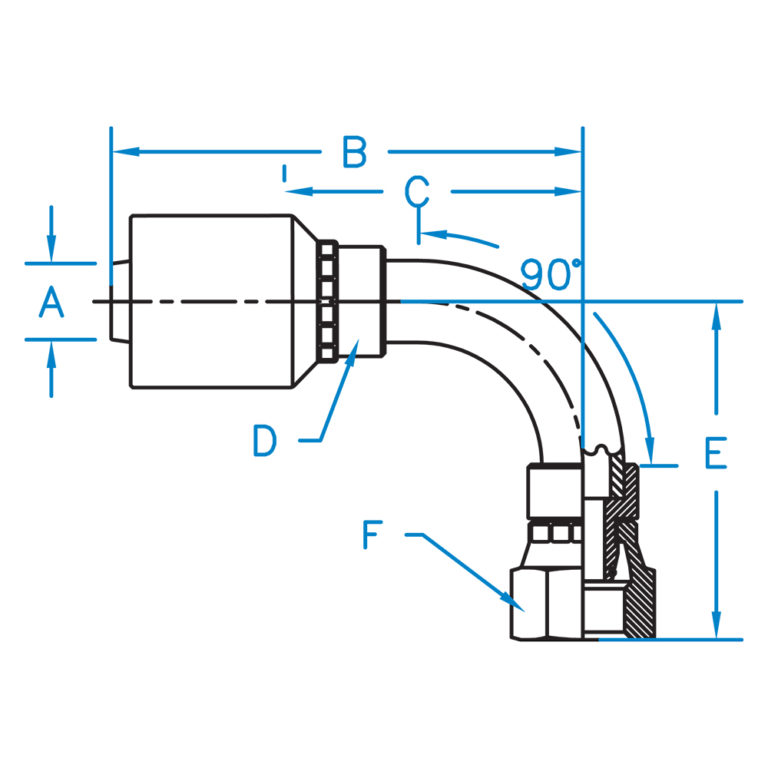

Part Number A B C D E F Hose ID
(In)		 Thread
F-DL9004-08-14-W 0.250 2.695 1.635 N/A 1.535 3/4 1/4" M14 X 1.5
F-DL9004-10-16-W 0.250 N/A N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DL9006-10-16-W 0.375 N/A N/A N/A N/A 7/8 3/8" M16 X 1.5
F-DL9006-12-18-W 0.375 2.830 1.6 N/A 1.860 15/16 3/8" M18 X 1.5
F-DL9008-15-22-W 0.500 3.486 2.146 N/A 2.260 1-1/16 1/2" M22 X 1.5
F-DL9008-18-26-W 0.500 N/A N/A N/A N/A 1-1/4 1/2" M26 X 1.5
F-DL9010-18-26-W 0.625 4.613 2.613 N/A 2.547 1-1/4 5/8" M26 X 1.5
F-DL9012-18-26-W 0.750 4.344 2.465 N/A 2.547 1-1/4 3/4" M26 X 1.5
F-DL9012-22-30-W 0.750 4.689 2.810 N/A 2.671 1-7/16 3/4" M30 X 2.0
F-DL9016-28-36-W 1.000 5.015 2.89 N/A 3.126 1-3/4 1.000" M36 X 2.0
F-DL9020-35-45-W 1.250 N/A N/A N/A N/A 2.000 1-1/4" M45 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
