F-DL9004-0814-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M14X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel

Sale price$63.23

Kurt Hydraulics
Din Light 24º Seat 90° Bent Tube Female Swivel With O-Ring


Buy More, Save More!
Quantity Price Each
10–39 $59.44
40–79 $53.75
80+ $47.42
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Hose Barb
  • L08 Female DIN

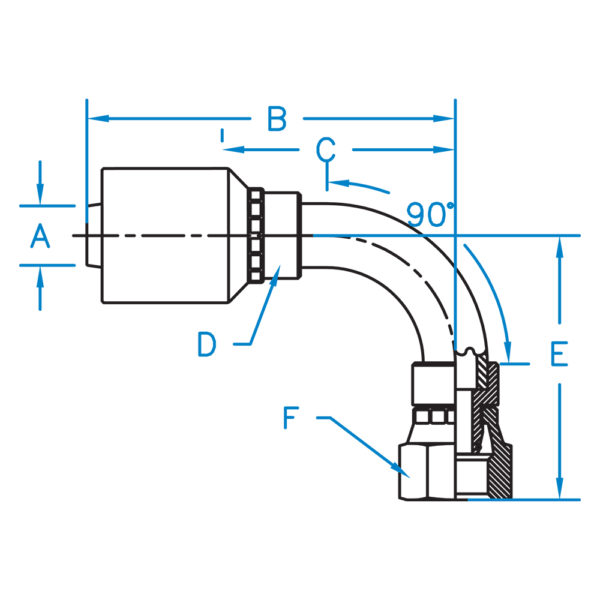

Part Number Hose I.D. (in.) B C D E F Thread
F-DL9004-0814-K2 1/4" 2.70" 1.64" 5/8" 1.54" 9/16" M14 X 1.5
F-DL9004-1016-K2 1/4" 2.84" 1.78" 5/8" 1.63" 3/4" M16 X 1.5
F-DL9006-1016-K2 3/8" 3.17" 1.80" 11/16" 1.63" 3/4" M16 X 1.5
F-DL9006-1218-K2 3/8" 2.98" 1.60" 3/4" 1.86" 7/8" M18 X 1.5
F-DL9008-1522-K2 1/2" 3.49" 2.15" 7/8" 2.26" 1-1/16" M22 X 1.5
F-DL9008-1826-K2 1/2" 3.49" 2.15" 7/8" 2.37" 1-1/4" M26 X 1.5
