F-DL4504-0814-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M14X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | 45° Elbow | Carbon Steel
Kurt Hydraulics
Din Light 24° Seat 45° Bent Tube Female Swivel With O-Ring
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $65.94 |
| 40–79 | $59.63 |
| 80+ | $52.61 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):

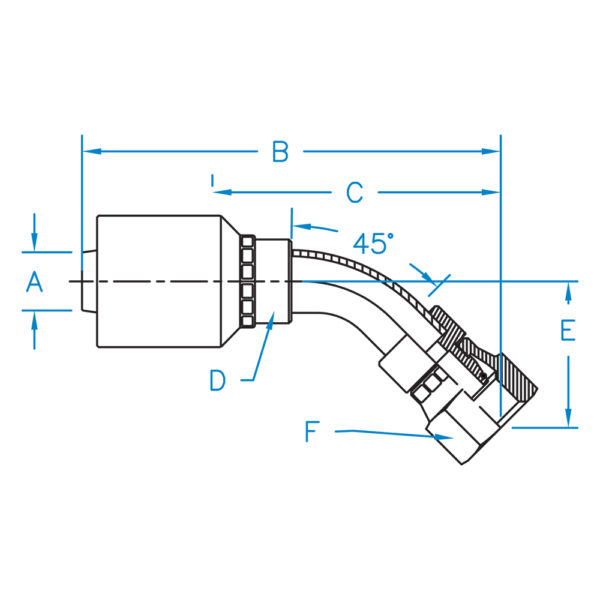

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-DL4504-0612-K2 | 1/4" | 3.38" | 2.32" | 5/8" | 0.92" | 9/16" | M12 X 1.5 |
| F-DL4504-0814-K2 | 1/4" | 3.37" | 2.31" | 5/8" | 0.91" | 11/16" | M14 X 1.5 |
| F-DL4504-1016-K2 | 1/4" | 3.60" | 2.54" | 5/8" | 1.10" | 3/4" | M16 X 1.5 |
| F-DL4506-1016-K2 | 3/8" | 3.93" | 2.56" | 11/16" | 1.10" | 3/4" | M16 X 1.5 |
| F-DL4506-1218-K2 | 3/8" | 3.82" | 2.59" | 3/4" | 1.13" | 7/8" | M18 X 1.5 |
| F-DL4508-1522-K2 | 1/2" | 4.28" | 2.94" | 7/8" | 1.22" | 1-1/16" | M22 X 1.5 |
