F-DL08-15-22-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M22X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | Carbon Steel
Kurt Hydraulics
Din Light 24º Seat Female Swivel With O-Ring
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.50 |
| 40–79 | $42.05 |
| 80+ | $37.10 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

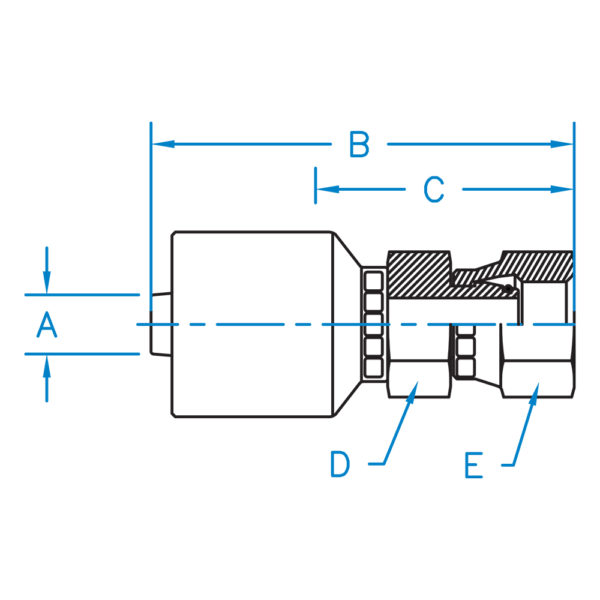

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| F-DL04-06-12-K2 | 1/4" | 2.18" | 1.12" | 11/16" | 9/16" | M12 X 1.5 |
| F-DL04-08-14-K2 | 1/4" | 2.30" | 1.24" | 9/16" | 11/16" | M14 X 1.5 |
| F-DL04-10-16-K2 | 1/4" | 2.23" | 1.17" | 11/16" | 3/4" | M16 X 1.5 |
| F-DL06-10-16-K2 | 3/8" | 2.56" | 1.19" | 3/4" | 3/4" | M16 X 1.5 |
| F-DL06-12-18-K2 | 3/8" | 2.60" | 1.23" | 3/4" | 7/8" | M18 X 1.5 |
| F-DL06-15-22-K2 | 3/8" | 2.71" | 1.34" | 3/4" | 1-1/16" | M22 X 1.5 |
| F-DL08-15-22-K2 | 1/2" | 2.80" | 1.46" | 7/8" | 1-1/16" | M22 X 1.5 |
| F-DL08-18-26-K2 | 1/2" | 3.78" | 1.68" | 1-1/8" | 1-1/4" | M26 X 1.5 |
