F-DH9008-1624-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x M24X1.5 Female Din Heavy Universal Seat Swivel w/ O-Ring | 90° Elbow | Carbon Steel
Kurt Hydraulics
Din Heavy Universal Seat 90° Tube Female Swivel With O-Ring
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $75.64 |
| 20–59 | $68.40 |
| 60+ | $60.35 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):

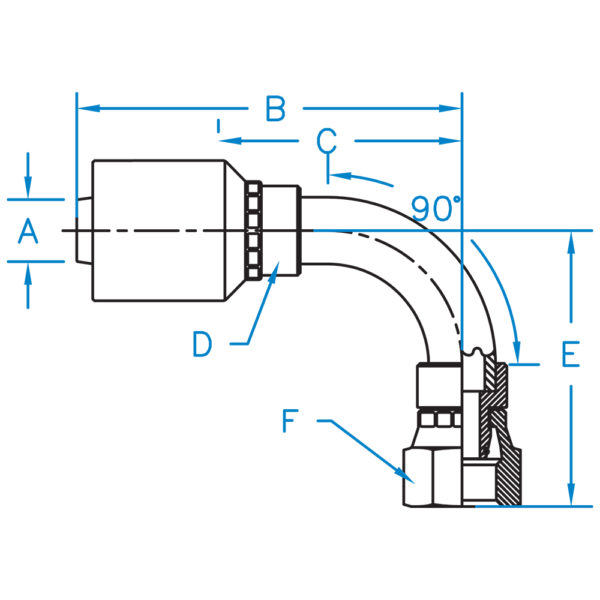

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-DH9004-0614-K2 | 1/4" | 5/8" | 11/16" | M14 X 1.5 | |||
| F-DH9004-0816-K2 | 1/4" | 2.84" | 1.78" | 5/8" | 1.54" | 3/4" | M16 X 1.5 |
| F-DH9004-1018-K2 | 1/4" | 2.70" | 1.64" | 5/8" | 1.50" | 7/8" | M18 X 1.5 |
| F-DH9006-0816-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 1.54" | 3/4" | M16 X 1.5 |
| F-DH9006-1018-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 1.54" | 7/8" | M18 X 1.5 |
| F-DH9006-1220-K2 | 3/8" | 3.17" | 1.80" | 3/4" | 2.01" | 15/16" | M20 X 1.5 |
| F-DH9006-1422-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 1.75" | 1-1/16" | M22 X 1.5 |
| F-DH9008-1220-K2 | 1/2" | 3.49" | 2.15" | 7/8" | 1.99" | 15/16" | M20 X 1.5 |
| F-DH9008-1422-K2 | 1/2" | 3.19" | 1.85" | 3/4" | 1.75" | 1-1/16" | M22 X 1.5 |
| F-DH9008-1624-K2 | 1/2" | 3.49" | 2.15" | 7/8" | 2.31" | 1-3/16" | M24 X 1.5 |
