F-DH04-10-18-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M18X1.5 Female Din Heavy 24° Seat w/ O-Ring | Carbon Steel
Kurt Hydraulics
Din Heavy 24º Seat Female Swivel With O-Ring
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $43.36 |
| 40–79 | $39.21 |
| 80+ | $34.60 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

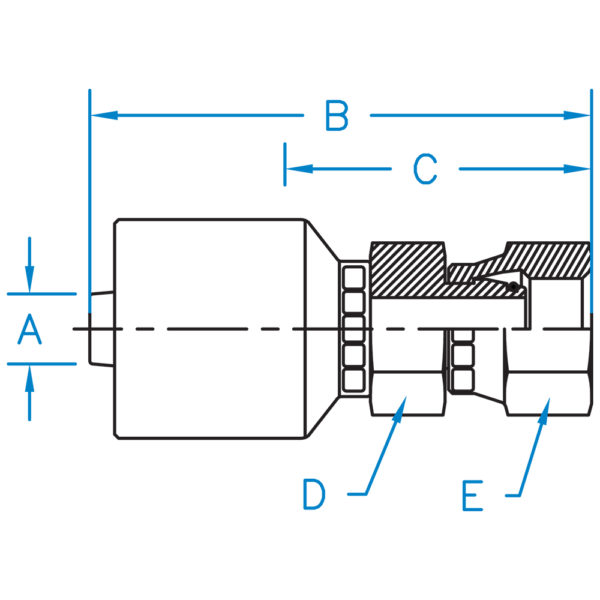

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| F-DH04-06-14-K2 | 1/4" | 11/16" | 11/16" | M14 X 1.5 | ||
| F-DH04-08-16-K2 | 1/4" | 2.07" | 1.01" | 9/16" | 3/4" | M16 X 1.5 |
| F-DH04-10-18-K2 | 1/4" | 2.08" | 1.02" | 5/8" | 7/8" | M18 X 1.5 |
| F-DH06-08-16-K2 | 3/8" | 2.60" | 1.23" | 11/16" | 3/4" | M16 X 1.5 |
| F-DH06-10-18-K2 | 3/8" | 2.52" | 1.15" | 11/16" | 7/8" | M18 X 1.5 |
| F-DH06-12-20-K2 | 3/8" | 2.51" | 1.14" | 11/16" | 15/16" | M20 X 1.5 |
| F-DH06-14-22-K2 | 3/8" | 2.65" | 1.28" | 3/4" | 1-1/16" | M22 X 1.5 |
| F-DH08-12-20-K2 | 1/2" | 2.78" | 1.44" | 7/8" | 15/16" | M20 X 1.5 |
| F-DH08-14-22-K2 | 1/2" | 2.69" | 1.34" | 7/8" | 1-1/16" | M22 X 1.5 |
| F-DH08-16-24-K2 | 1/2" | 2.63" | 1.29" | 7/8" | 1-3/16" | M24 X 1.5 |
