F-BSPX45-0404-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female BSPP Swivel | 45° Elbow | Carbon Steel
Kurt Hydraulics
Female British Pipe 45° Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $49.86 |
| 40–79 | $45.08 |
| 80+ | $39.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):

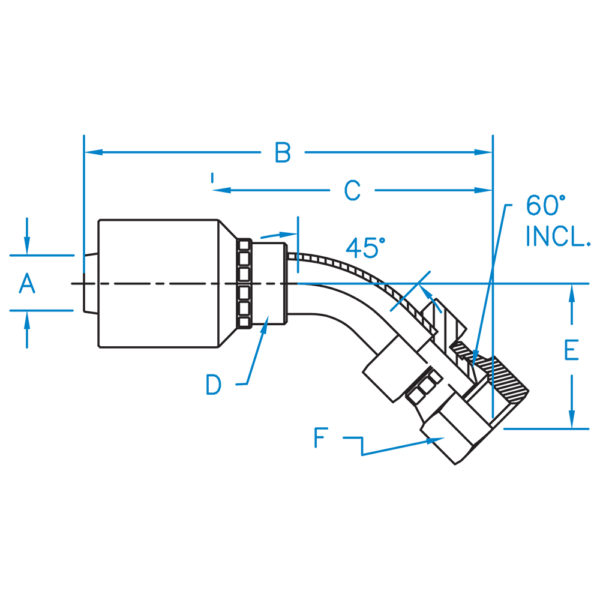

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-BSPX45-0404-K2 | 1/4" | 3.17" | 2.11" | 5/8" | 0.75" | 3/4" | 1/4 – 19 |
| F-BSPX45-0406-K2 | 1/4" | 3.45" | 2.39" | 5/8" | 0.95" | 7/8" | 3/8 – 19 |
| F-BSPX45-0606-K2 | 3/8" | 3.78" | 2.41" | 3/4" | 0.95" | 7/8" | 3/8 – 19 |
| F-BSPX45-0608-K2 | 3/8" | 4.10" | 2.73" | 3/4" | 1.00" | 1" | 1/2 – 14 |
| F-BSPX45-0808-K2 | 1/2" | 3.36" | 2.02" | 7/8" | 0.71" | 1" | 1/2 – 14 |
