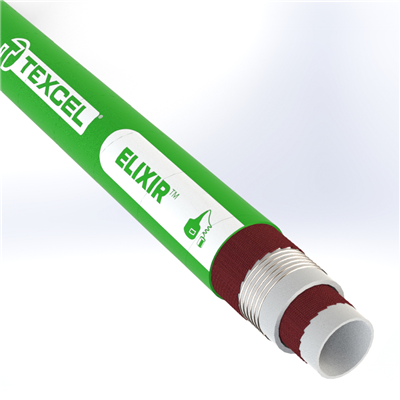

ELIX-2.0-100 by Texcel | ELIXIR™ Series | Distillery Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green
Texcel
ELIXIR™ Series | Distillery Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $35.61 |
| 40–79 | $32.20 |
| 80+ | $28.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | ELIXIR™ distillery hose is specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water, and other related foodstuffs. The ELIXIR™ hose has a clear, UHMWPE tube to ensure food quality and is both odorless and does not alter taste. Its higher working temperature allows for it to be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, KTW, EC 1935 / 2004. | Tube: | Clear, UHMWPE |
| Cover: | Green, EPDM | Reinforcement: | High strength synthetic plies with steel helix |
| Safety Factor: | 3:1 | Temperature: | -40°F to +230°F |
| Branding: | TEXCEL® ELIXIR™ DISTILLERY HOSE 150 PSI (10 BAR) W.P. TEMP. -4F TO 230F (-20C TO 100C) STERILIZATION AT 230F FOR 30 MINS FDA BFR KTW | Safety Note: | It is recommended that all food grade hose be thoroughly flushed prior to initial use |
| Features: | FDA, USDA compliant | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| ELIX-.75-100 | 3/4" | 1-14/64" | 150 psi | 29 | 2.5" | 0.48 lbs |
| ELIX-.50-100 | 1/2" | 58/64" | 150 psi | 29 | 2" | 0.39 lbs |
| ELIX-1.0-100 | 1" | 1-29/64" | 150 psi | 29 | 3.5" | 0.58 lbs |
| ELIX-1.5-100 | 1-1/2" | 2" | 150 psi | 29 | 5" | 0.91 lbs |
| ELIX-2.0-100 | 2" | 2-41/64" | 150 psi | 29 | 7.5" | 1.54 lbs |
| ELIX-2.5-100 | 2-1/2" | 3-10/64" | 150 psi | 29 | 9" | 1.69 lbs |
| ELIX-3.0-100 | 3" | 3-40/64" | 150 psi | 29 | 11" | 2.07 lbs |
| ELIX-4.0-100 | 4" | 4-41/64" | 150 psi | 29 | 13" | 3.03 lbs |
