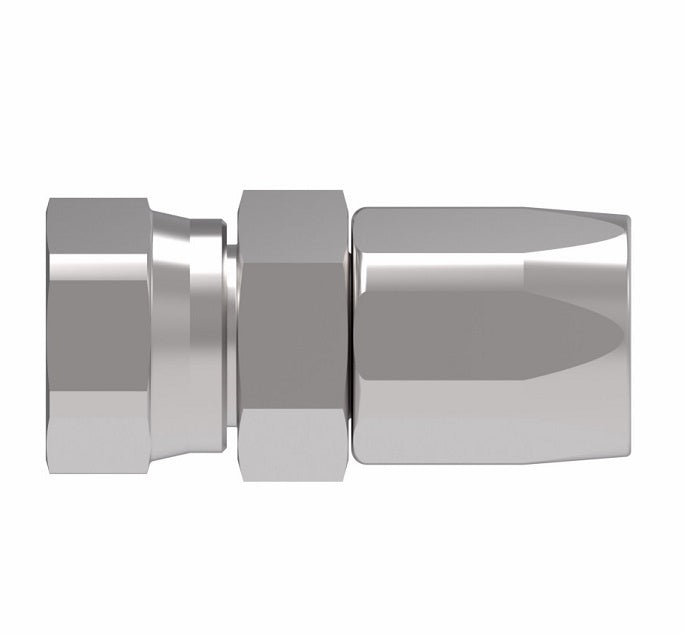

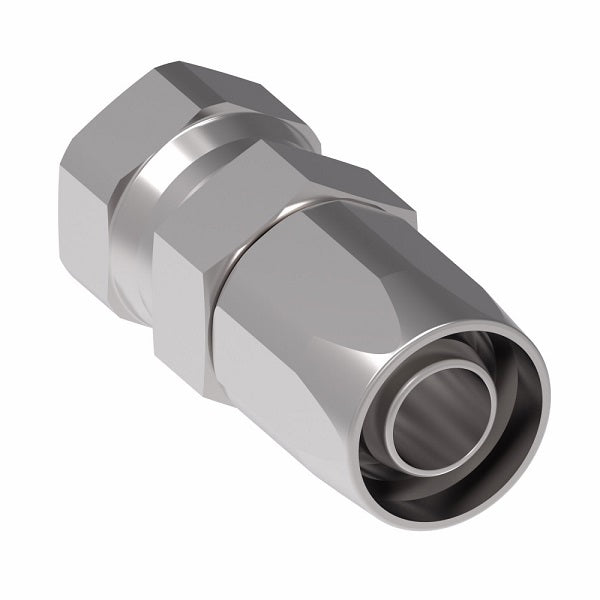

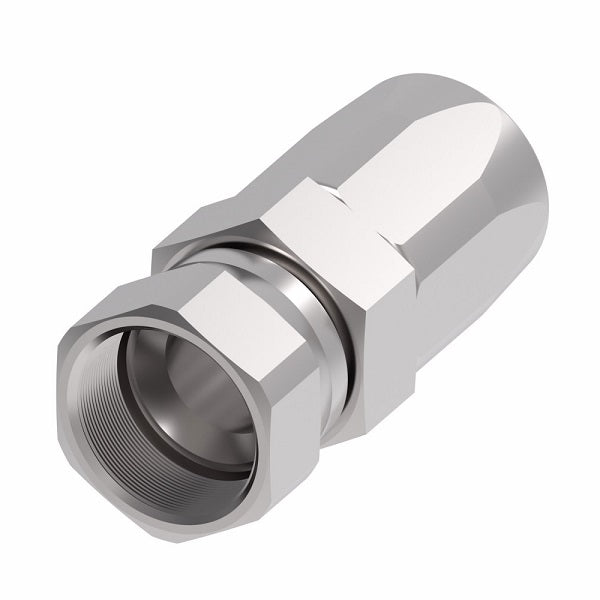

EJ5306-2424S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -24 Female 37° JIC Swivel x -24 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Tube Size | Thread Size | A | Hose cut-off Factor |
Hole dia. | Hex | O-Ring ref |
| EJ5306-1212S | 12" | 12" | 1-1/16x12 | 3.03" | 1.51" | 0.47" | 1-1/4" | FF91026-12 |
| EJ5306-1616S | 16" | 16" | 1-5/16x12 | 1.78" | 1.62" | 0.69" | 1-1/2" | FF91026-16 |
| EJ5306-2020S | 20" | 20" | 1-5/8x12 | 3.15" | 3.15" | 0.95" | 2" | FF91026-20 |
| EJ5306-2424S | 24" | 24" | 1-7/8-12 | 3.33" | 1.95" | 1.16" | 2-1/4" | FF91026-24 |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
