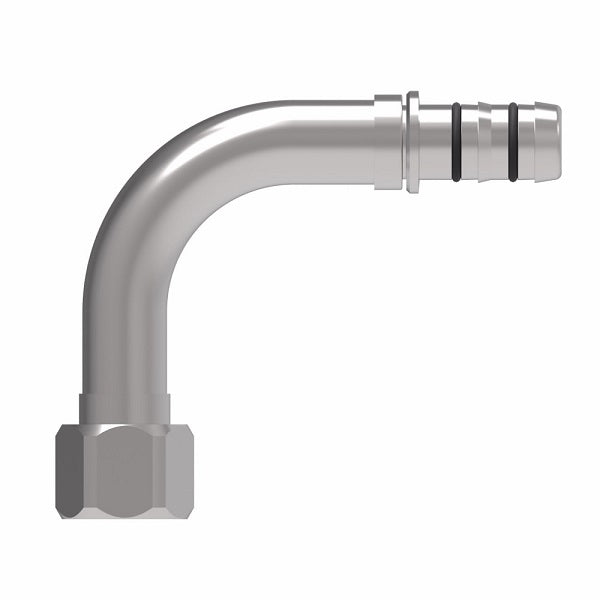

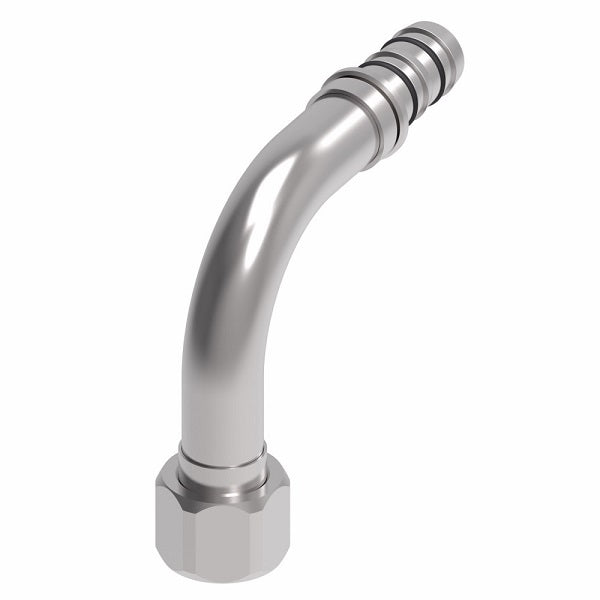

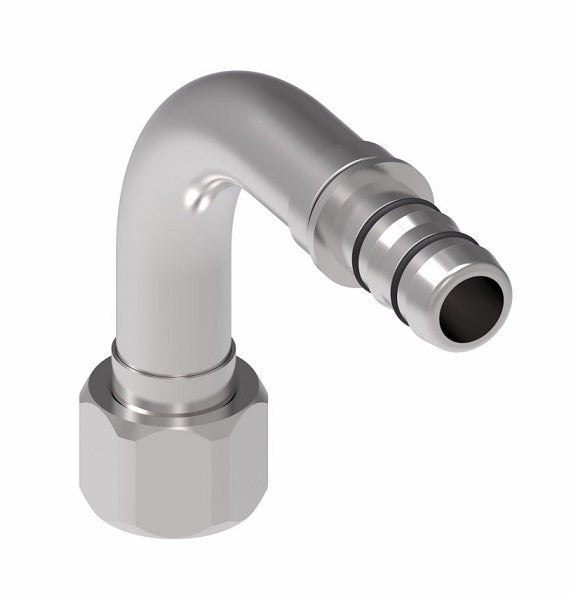

EJ3533-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - 90° Elbow
Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.65 |
| 40–79 | $61.17 |
| 80+ | $53.98 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
| EJ3533-01-0404S | 7/16-20 | -04 | 2.09" | 1.42" | 1.21" | 0.56" | FF14175 |
| EJ3533-02-0606S | 9/16-18 | -06 | 3.27" | 1.74" | 1.69" | 0.69" | FF14171 |
| EJ3533-03-0608S | 9/16-18 | -08 | 3.28" | 1.74" | 1.69" | 0.69" | FF14172 |
| EJ3533-04-0808S | 3/4-16 | -08 | 3.14" | 1.60" | 1.77" | 0.88" | FF14172 |
| EJ3533-05-1010S | 7/8-14 | -10 | 3.78" | 2.23" | 2.59" | 1.00" | FF14173 |
| EJ3533-06-1212S | 1-1/16-12 | -12 | 4.11" | 2.53" | 3.02" | 1.25" | FF14174 |
| EJ3533-07-1616S | 1-5/16-12 | -16 | 5.16" | 3.48" | 3.86" | 1.50" | FF14401 |
