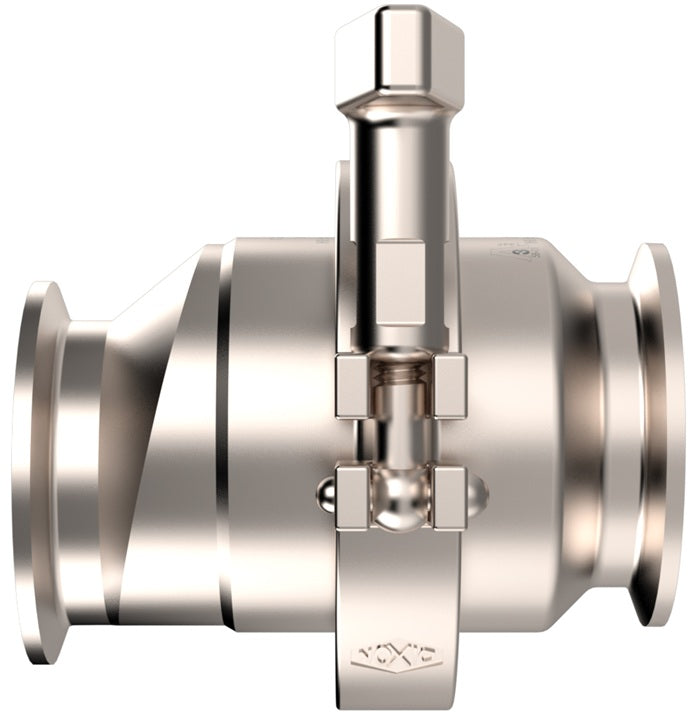

EHSCE075 Dixon Valve EHSC Spring Check Valve - 3/4" Clamp Connection - EPDM Gasket - 316L Stainless Steel

EHSCE075 Dixon Valve EHSC Spring Check Valve - 3/4" Clamp Connection - EPDM Gasket - 316L Stainless Steel

Sale price$240.25
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCE050 1/2" 10.0 PSI 145 PSI
EHSCE075 3/4" 4.0 PSI -
EHSCE100 1" 2.5 PSI -
EHSCE150 1-1/2" 1.0 PSI -
EHSCE200 2" 1.5 PSI -
EHSCE250 2-1/2" 0.8 PSI -
EHSCE300 3" 0.5 PSI -
EHSCE400 4" 0.4 PSI -

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Sanitary Clamp End
  • 3/4in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
