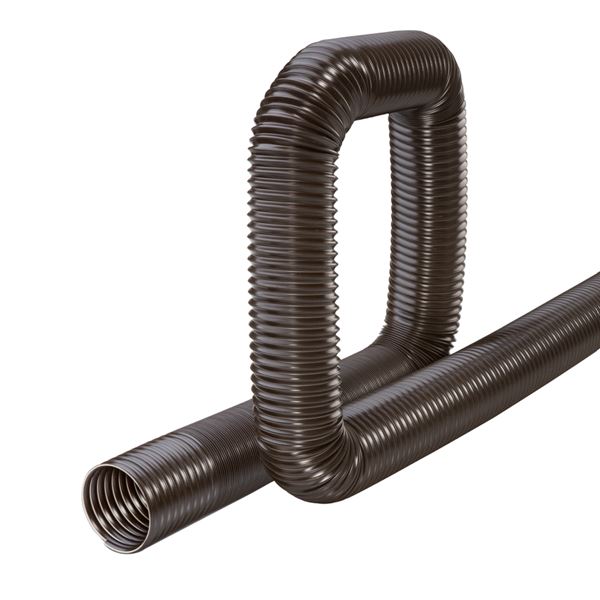

EDB-500X20 Tiger-Duct® by Kuriyama | Extendo-Duct® | EDB™ Series | Extendible / Contractible Ducting Hose | 5" ID | 5.18" OD | Brown | 20ft Length
EDB-500X20 Tiger-Duct® by Kuriyama | Extendo-Duct® | EDB™ Series | Extendible / Contractible Ducting Hose | 5" ID | 5.18" OD | Brown | 20ft Length

EDB-500X20 Tiger-Duct® by Kuriyama | Extendo-Duct® | EDB™ Series | Extendible / Contractible Ducting Hose | 5" ID | 5.18" OD | Brown | 20ft Length

Minimum Order Quantity: 5 Units

Sale price$345.08

Package Quantity: 20 Foot

Buy more, save moreDiscounts applied in cart/checkout.
General Applications:
  • Air conditioning, spot cooling and heating systems
  • Clean room and chemical fume exhaust
  • Ducting, ventilation & fume removal
  • Dust control
  • Not for liquid handling use
  • OEM equipment applications

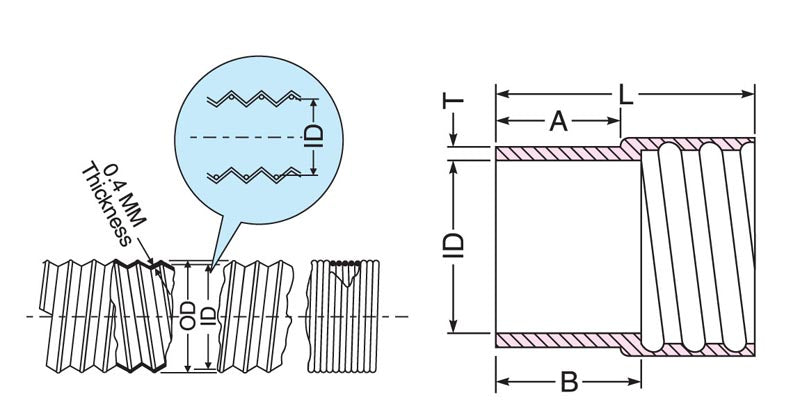

Construction:
  • Extendable/contractible polypropylene tube with coated steel wire helix.
Specifications:
  • Phthalate Free
Service Temperature Range:
  • -4°F (-20°C) to +175°F (+80°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Polypropylene Tube - Inert polypropylene material produces no off-gassing and is resistant to a wide variety of chemical fumes, making it ideal for a wide variety of clean room and fume exhaust applications.
  • Extendible and Contractible - Hose extends easily and can be contracted to approximately one-third of full extended length for storage, shipping or where the full length is not required.
  • Self-supporting - Unique construction allows the hose to maintain it shape and support itself once positioned.
  • Steel Wire Helix - Coated steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Well suited for high cycle applications.
  • Interlock Construction - Two sections can be joined by twisting them together. No mender required.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
Brown
Part
Number
25ft
Length		 White
Part
Number
25ft
Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating		 Min. Bend
Radius		 Approx.
Contracted
Shipping
Length
Hose
Only		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 in (lbs/ft)
EDB-150X20 EDW-150X20 1-1/2" 37.5mm 1.63" 41.5mm 20 PSI 7 PSI 22 in Hg 14 in Hg 1.2" 85" 0.10 lbs/ft
EDB-200X20 EDW-200X20 2" 53.5mm 2.26" 57.5mm 13 PSI 6 PSI 21 in Hg 12 in Hg 1.6" 82" 0.12 lbs/ft
EDB-250X20 EDW-250X20 2-1/2" 67.0mm 2.80" 71.0mm 10 PSI 5 PSI 19 in Hg 10 in Hg 2.0" 72" 0.16 lbs/ft
EDB-300X20 EDW-300X20 3" 76.5mm 3.17" 80.5mm 10 PSI 5 PSI 18 in Hg 10 in Hg 2.3" 72" 0.18 lbs/ft
EDB-400X20 EDW-400X20 4" 102.0mm 4.17" 106.0mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3.0" 70" 0.23 lbs/ft
EDB-500X20 EDW-500X20 5" 127.5mm 5.18" 131.5mm 7 PSI 3 PSI 10 in Hg 6 in Hg 4.3" 70" 0.27 lbs/ft
EDB-600X20 EDW-600X20 6" 155.0mm 6.26" 159.0mm 6 PSI 3 PSI 7 in Hg 5 in Hg 5.1" 70" 0.33 lbs/ft

Additional Product Data:

Brand:
  • Tiger-Duct
Series:
  • Extendo-Duct
  • EDB Series
Color(s):
  • Brown

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
