EC525-32 Aeroquip by Danfoss | Hi-Temp Spiral Premium High Temperature 6-Spiral Wire Hydraulic Hose | SAE 100R12 | 2.00" ID
Aeroquip® by Danfoss

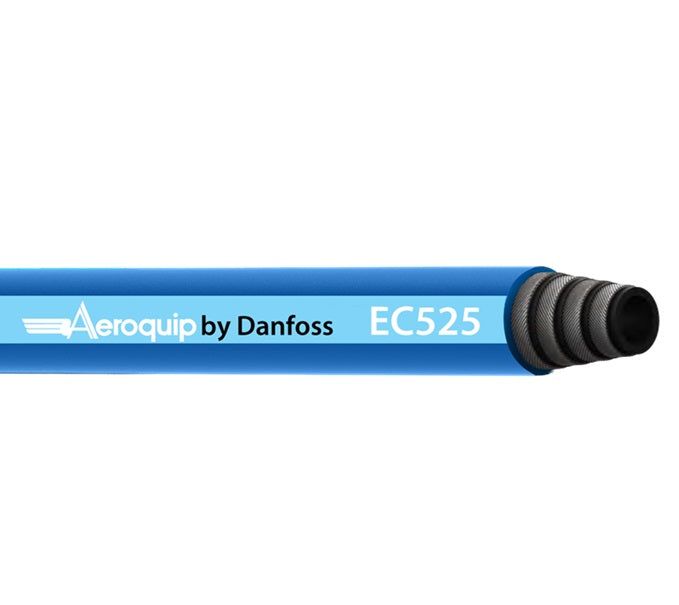

EC525 Series | Hi-Temp Spiral Premium High Temperature 4-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.65 |
| 20–59 | $87.40 |
| 60+ | $77.12 |
Product Data:
3250
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic system service with petroleum, fire-resistant, and water-basedfluids, fuel, and lubricating systems. | SAE Rating: | Exceeds: SAE 100R12, EN 856 Type R12 performance |
| Other Ratings: | MSHA Accepted | Tube: | AQP Elastomer |
| Reinforcement: | 4-spiral wire in -12 to -24 6-spiral wire in -32 | Cover: | CPE High Temperature |
| Temperature Range: | (-40°F to +300°F)(-40°C to +149°C) (-40°C to +82°C)(-40°F to +180°F) for phosphate-ester base fluids |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| EC525-12 | 19 | 19,0mm | 0.75" | 30,7mm | 1.21" | 345,0 bar | 5000 psi | 1380,0 bar | 20000 psi | 241,3mm | 9.50" | 1,28 kg/m | 0.86 lbs/ft |
| EC525-16 | 25 | 25,4mm | 1.00" | 37,9mm | 1.49" | 345,0 bar | 5000 psi | 1380 bar | 20000 psi | 304,8mm | 12.00" | 1,73 kg/m | 1.16 lbs/ft |
| EC525-20 | 31 | 31,8mm | 1.25" | 46,6mm | 1.84" | 240,0 bar | 3500 psi | 960,0 bar | 14000 psi | 419,1mm | 16.50" | 2,31 kg/m | 1.55 lbs/ft |
| EC525-24 | 38 | 38,1mm | 1.50" | 53,9mm | 2.12" | 240,0 bar | 3500 psi | 960,0 bar | 14000 psi | 508,0mm | 20.00" | 2,96 kg/m | 1.99 lbs/ft |
| EC525-32 | 51 | 50,8mm | 2.00" | 67,3mm | 2.65" | 225,0 bar | 3250 psi | 900,0 bar | 13000 psi | 635,0mm | 25.00" | 4,42 kg/m | 2.97 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
