E5K-24 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5K Series | 6-Wire | Minetuff Hydraulic Hose | 1-1/2" ID | 2.16" OD | 5000 PSI

E5K-24 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5K Series | 6-Wire | Minetuff Hydraulic Hose | 1-1/2" ID | 2.16" OD | 5000 PSI | 200ft Length

Sale price$7,616.98

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E5K Series | 5000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.


Package Quantity: 200 Units

Buy More, Save More!
Quantity Price Each
3–5 $7,159.96
6+ $6,855.28
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • E5K Series
Color(s):
  • Black

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R13
Other Ratings: EN856 4SP (5/8", 3/4" and 1")
EN856 4SH (1-1/4")
ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil and biodegradeable hydraulic fluid resistant synthetic rubber

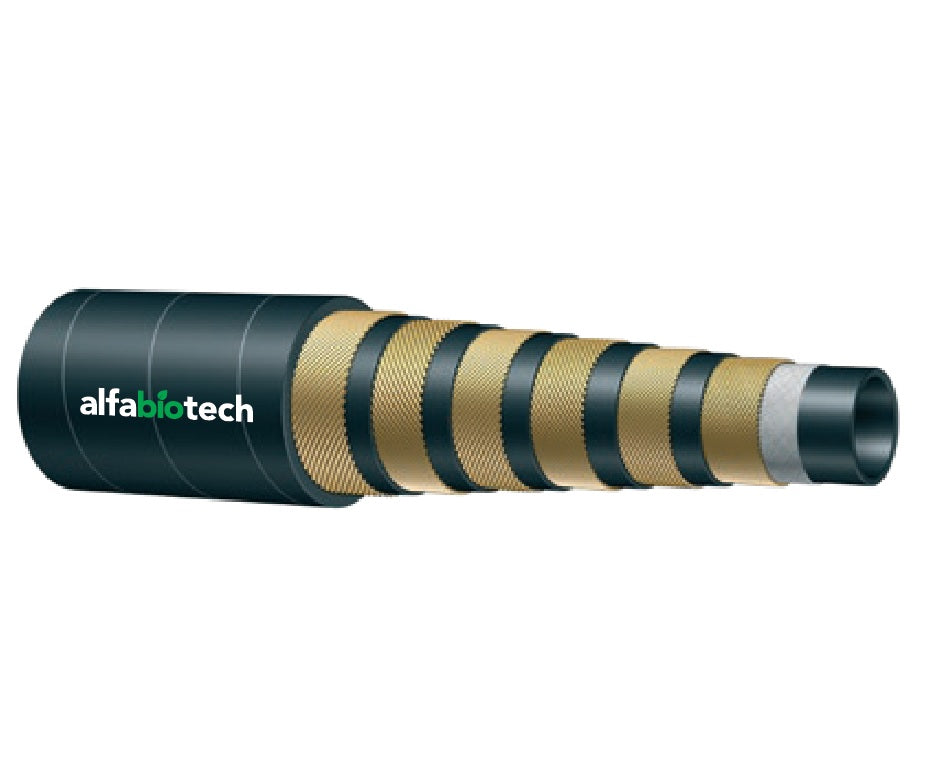

Reinforcement: Four/six high tensile steel spirals Cover: Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 5K MINETUFF ... WP 35 MPa (5000 PSI) - ISO 18752/CC - MSHA IC-152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E5K-10 5/8" 15.9mm 1.00" 25.4mm 5000 PSI 3.94" 100.0mm By the Foot 0.57 lbs
E5K-12 3/4" 19.1mm 1.16" 29.4mm 5000 PSI 4.72" 120.0mm By the Foot 0.79 lbs
E5K-16 1" 25.4mm 1.47" 37.4mm 5000 PSI 5.91" 150.0mm By the Foot 1.10 lbs
E5K-20 1-1/4" 31.8mm 1.73" 44.0mm 5000 PSI 8.27" 210.0mm 200ft 1.49 lbs
E5K-24 1-1/2" 38.1mm 2.16" 54.8mm 5000 PSI 9.84" 250.0mm 200ft 2.64 lbs
E5K-32 2" 50.8mm 2.70" 68.7mm 5000 PSI 12.52" 318.0mm 200ft 3.89 lbs
