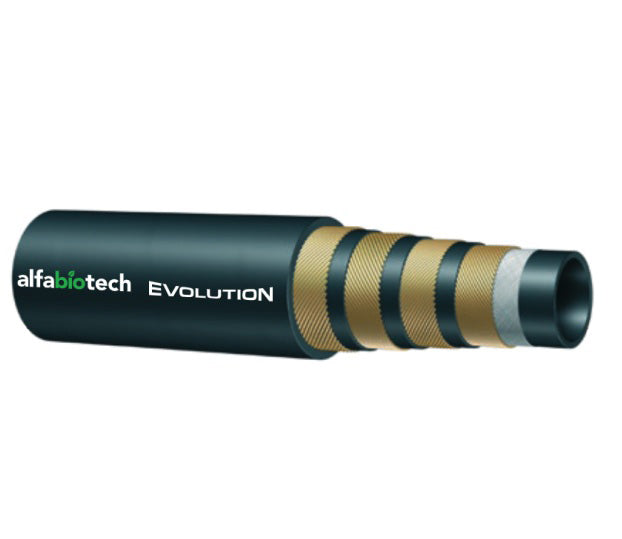

E5.5K-16 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5.5K Series | 4-Wire | Minetuff Hydraulic Hose | 1" ID | 1.47" OD | 5500 PSI
Kuriyama

E5.5K-16 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5.5K Series | 4-Wire | Minetuff Hydraulic Hose | 1" ID | 1.47" OD | 5500 PSI | Bulk/Multiple Piece Quantities

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R13
Other Ratings: ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four high tensile steel spirals Cover: Abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 5K PLUS MINETUFF ... WP 38 MPa (5500 PSI) - exceeds ISO 18752/CC - SAE 100 R13 - MSHA IC-152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E5.5K-12 3/4" 19.1mm 1.19" 30.2mm 5500 PSI 4.72" 120.0mm By the Foot 0.86 lbs
E5.5K-16 1" 25.4mm 1.47" 37.4mm 5500 PSI 5.91" 150.0mm By the Foot 1.23 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
