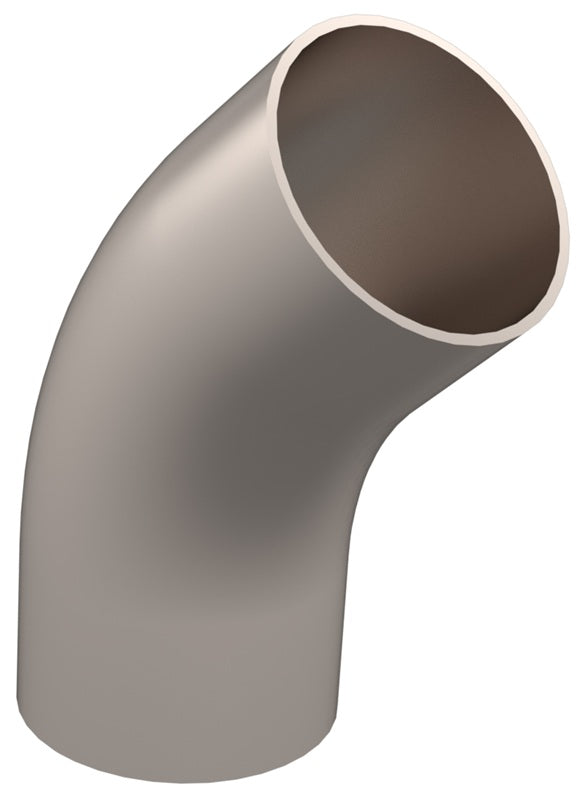

DVF-C400R2T Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow with Tangent for D-TORR Vacuum Fitting - 4" OD - 316L Stainless Steel (Bead Blast)
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C075R2T | 3/4" | 0.76" | 1.00" | 0.065" | 0.75" |
| DVF-C100R2T | 1" | 1.19" | 1.50" | 0.065" | 1.00" |
| DVF-C150R2T | 1-1/2" | 1.63" | 2.25" | 0.065" | 1.50" |
| DVF-C200R2T | 2" | 2.31" | 3.00" | 0.065" | 2.00" |
| DVF-C250R2T | 2-1/2" | 3.00" | 3.75" | 0.065" | 2.50" |
| DVF-C300R2T | 3" | 3.68" | 4.50" | 0.065" | 3.00" |
| DVF-C400R2T | 4" | 4.81" | 6.00" | 0.083" | 4.00" |
| DVF-C600R2T | 6" | 7.33" | 9.00" | 0.109" | 6.00" |
Dimensions are approximate and subject to change at any time without notice.
