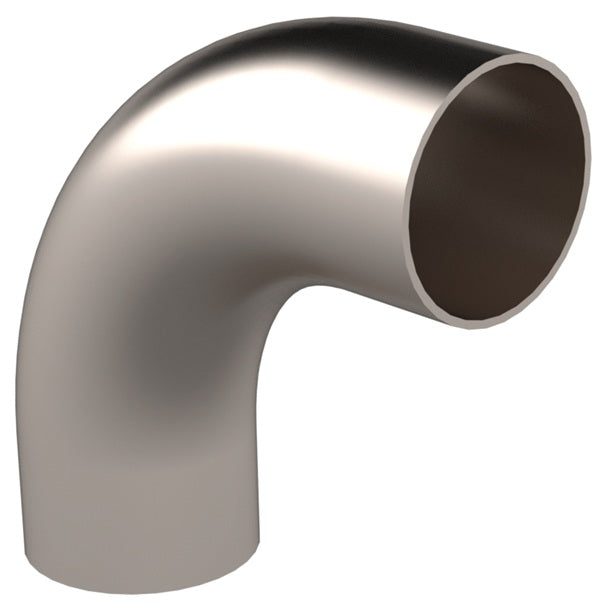

DVF-C400G1R Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow with Tangents for D-TORR Vacuum Fitting - 4" OD - 304 Stainless Steel
Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 90° Elbow with Tangent
Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.
Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $186.03 |
| 20–59 | $168.22 |
| 60+ | $148.43 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Material(s):
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C075G1R | 3/4" | 1.00" | 1.42" | 0.065" | 0.75" |
| DVF-C100G1R | 1" | 1.50" | 1.82" | 0.065" | 1.00" |
| DVF-C150G1R | 1-1/2" | 2.25" | 2.94" | 0.065" | 1.50" |
| DVF-C200G1R | 2" | 3.00" | 4.06" | 0.065" | 2.00" |
| DVF-C250G1R | 2-1/2" | 3.75" | 5.19" | 0.065" | 2.50" |
| DVF-C300G1R | 3" | 4.50" | 6.31" | 0.065" | 3.00" |
| DVF-C400G1R | 4" | 6.00" | 8.31" | 0.083" | 4.00" |
Dimensions are approximate and subject to change at any time without notice.
