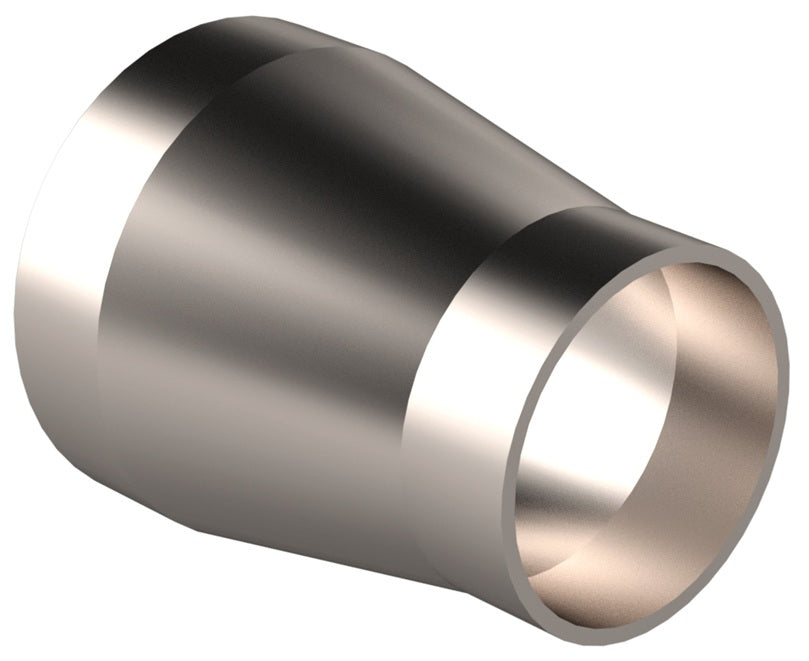

DVF-C200100G1U Dixon Valve Vacuum Weld Fitting - Concentric Reducer with Tangent for D-TORR Vacuum Fitting - 2" x 1" OD - 304 Stainless Steel
Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Concentric Reducer with Tangent
Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.
Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $59.46 |
| 40–79 | $53.77 |
| 80+ | $47.45 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| DVF-C100075G1U | 1" x 3/4" | 1.38" | 0.50" | 1.00" | 0.75" | 0.065" |
| DVF-C150075G1U | 1-1/2" x 3/4" | 2.38" | 0.50" | 1.50" | 0.75" | 0.065" |
| DVF-C150100G1U | 1-1/2" x 1" | 2.38" | - | - | - | - |
| DVF-C200100G1U | 2" x 1" | 2.38" | 0.50" | 2.00" | 1.00" | 0.065" |
| DVF-C200150G1U | 2" x 1-1/2" | 2.38" | 0.50" | 2.00" | 1.50" | 0.065" |
| DVF-C250150G1U | 2-1/2" x 1-1/2" | 2.38" | 0.50" | 2.50" | 1.50" | 0.065" |
| DVF-C250200G1U | 2-1/2" x 2" | 2.38" | 0.50" | 2.50" | 2.00" | 0.065" |
| DVF-C300150G1U | 3" x 1-1/2" | 3.63" | 0.50" | 3.00" | 1.50" | 0.065" |
| DVF-C300200G1U | 3" x 2" | 3.63" | 0.50" | 3.00" | 2.00" | 0.065" |
| DVF-C300250G1U | 3" x 2-1/2" | 3.63" | 0.50" | 3.00" | 2.50" | 0.065" |
| DVF-C400200G1U | 4" x 2" | 3.63" | 0.50" | 4.00" | 2.00" | 0.065" |
| DVF-C400250G1U | 4" x 2-1/2" | 3.63" | 0.50" | 4.00" | 2.50" | 0.065" |
| DVF-C400300G1U | 4" x 3" | 3.63" | 0.50" | 4.00" | 3.00" | 0.065" |
Dimensions are approximate and subject to change at any time without notice.
