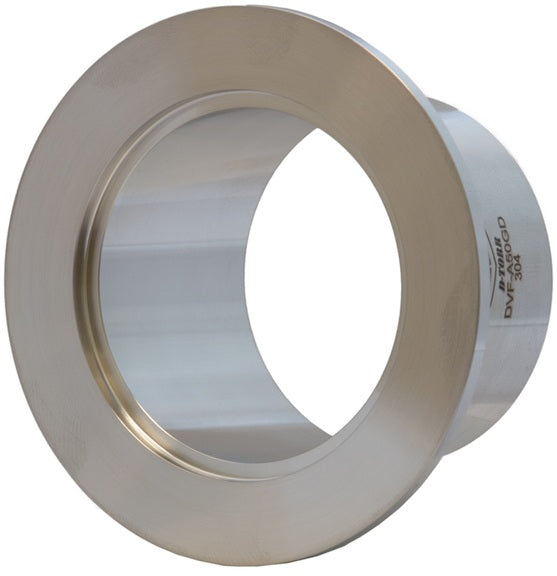

DVF-A25GD Dixon Valve KF Long Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

DVF-A25GD Dixon Valve KF Long Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

Sale price$37.88

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Long Weld Flange - 304 Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Buy More, Save More!
Quantity Price Each
10–39 $35.61
40–79 $32.20
80+ $30.30
Discounts applied in cart/checkout.
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C D
DVF-A10GD KF10 1.18" 0.48" 0.37" 0.50"
DVF-A16GD KF16 1.18" 0.67" 0.62" 0.75"
DVF-A25GD KF25 1.58" 1.03" 0.87" 1.00"
DVF-A40GD KF40 2.17" 1.62" 1.37" 1.50"
DVF-A50GD KF50 2.95" 2.05" 1.87" 2.00"

Product Data:

Shape:

Straight

Material(s):
  • 304 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
