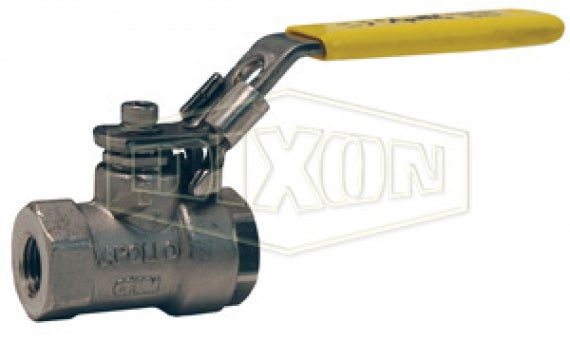

DSBV150 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | 316 Stainless Steel

DSBV150 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | 316 Stainless Steel

Sale price$388.86

Dixon Valve & Coupling
2-Piece Domestic Ball Valve | 316 Stainless Steel
Buy More, Save More!
Quantity Price Each
5–14 $365.53
15–29 $330.53
30+ $291.65
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Female NPT
  • 1-1/2in Female NPT
  • Some Ends Match
Material(s):
  • 316 Stainless Steel
Features:
  • Blow-out proof stem.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless ball and stem.
  • RPTFE seal.
  • Vinyl handle cover.
Specifications:
  • Temperature range: -40°F to 400°F (-40°C to 204°C).
  • Pressure rating: 1,000 PSI CWP.
  • Pressure rating: 150 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
DSBV25 1/4" Full
DSBV38 3/8" Full
DSBV50 1/2" Full
DSBV75 3/4" Full
DSBV100 1" Full
DSBV125 1-1/4" Full
DSBV150 1-1/2" Full
DSBV200 2" Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
