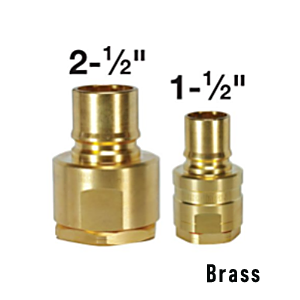

DS16F16-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 2-1/2" Plug x 2" Female NPTF Thread | Brass

DS16F16-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 2-1/2" Plug x 2" Female NPTF Thread | Brass

Sale price$79.41

Foster Quick Disconnects - FHK & DS Series 2-1/2" Two Way Shut-Off, Plugs and Sockets - Breco
Buy More, Save More!
Quantity Price Each
5–19 $74.65
20–59 $67.50
60+ $59.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • DS Series
Shape:

Straight
FHK Series Product Information
Applications: Hydraulic couplings used to prevent fluid loss upon disconnection; suitable for various media. Seal Compound: Buna-N (Nitrile)
Vacuum Service: 27" Hg. per ANSI/B93.2-1986 with 4:1 Safety Factor Type: FHK, Two-Way Shutoff – Both socket and plug sealed at disconnect
Interchangeability: Standard industrial design. ISO 7241-1, Series B compatible Operation: Manual sleeve retraction required
Connect/disconnect at zero pressure for safety
Options:
  • One Way Shut-Off (VA): Valve actuator option
  • Straight-Thru (LV): Less valve option
  • Ball Lock (BL): Prevents accidental disconnect
Ordering Info: Available in plated steel, brass, 303/316 stainless. Brass has double O-rings and stainless balls. Standard seals are Buna-N. Locking sleeves use “BL” prefix.
Part Number Type Finish Body Size Thread Size Hex Wrench Area Max. Working Pressure Hydraulic Oil Rated Flow at 100°F
In. ISO mm
16DSF16-B Socket Brass 2-1/2" 50 mm 2" NPTF 3.74" 700 PSI 200 gpm
DS16F16-B Plug Brass 2-1/2" 50 mm 2" NPTF 3.74" 700 PSI 200 gpm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
