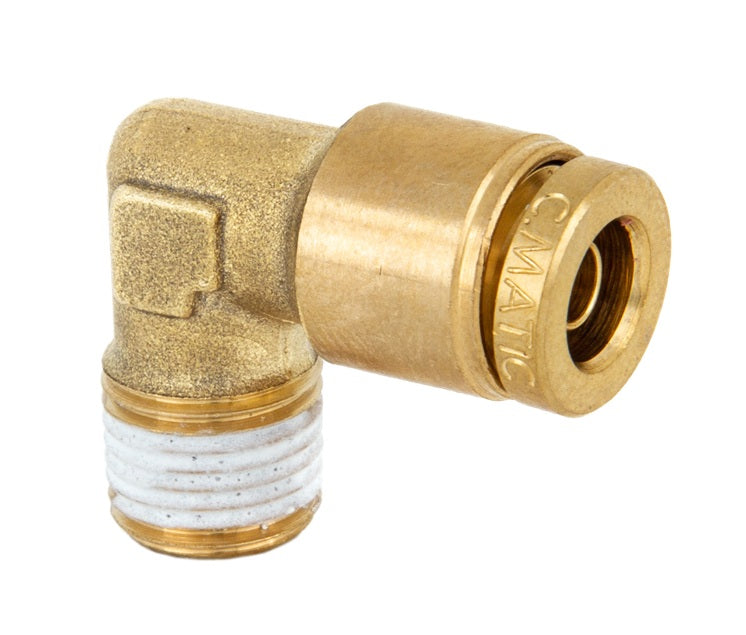

DOT-BRME90-0604 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRME90 Series | DOT Air Brake Push-to-Connect Fitting | 90° Elbow | 3/8" Tube OD x 1/4" Male NPTF | Brass | (Pack of 25)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRME90 Series | 90° Elbow | Male Push-to-Connect x Male NPTF
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $157.71 |
| 20–59 | $142.61 |
| 60+ | $125.84 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD (in) |
Tube* ID (in) |
D1 NPTF (in) |
D2 (in) |
L1 (in) |
L2 (in) |
L3 (in) |
HEX (mm) |
Weight Each (lbs) |
| DOT-BRME90-0402 | 1/4" | 0.165" | 1/8" | 0.472" | 0.331" | 0.630" | 0.866" | 10mm | 0.032 lbs |
| DOT-BRME90-0404 | 1/4" | 0.165" | 1/4" | 0.472" | 0.433" | 0.787" | 0.866" | 10mm | 0.044 lbs |
| DOT-BRME90-0604 | 3/8" | 0.244" | 1/4" | 0.630" | 0.472" | 0.886" | 1.024" | 14mm | 0.072 lbs |
| DOT-BRME90-0606 | 3/8" | 0.244" | 3/8" | 0.630" | 0.433" | 0.886" | 1.024" | 14mm | 0.079 lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
