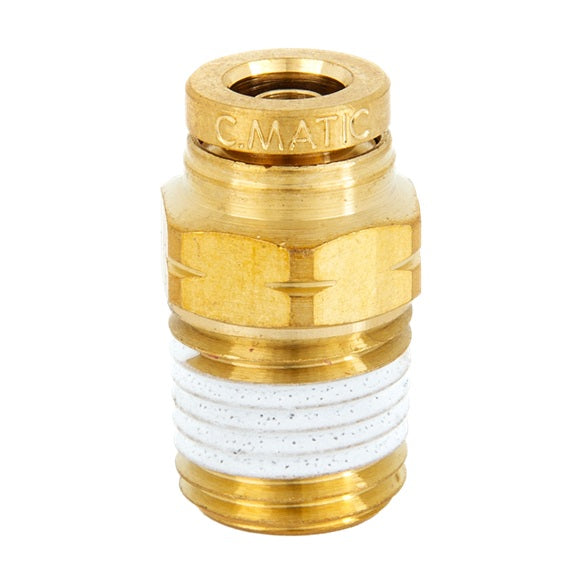

DOT-BRMC-0808 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRMC Series | DOT Air Brake Push-to-Connect Fitting | 1/2" Tube OD x 1/2" Male NPTF | Brass | (Pack of 25)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRMC Series | Male Push-to-Connect x Male NPTF
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $192.07 |
| 20–59 | $173.68 |
| 60+ | $153.25 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD (in) |
Tube* ID (in) |
D1 NPTF (in) |
D2 (in) |
L1 (in) |
L2 (in) |
HEX (in) |
Weight Each (lbs) |
| DOT-BRMC-0402 | 1/4" | 0.165" | 1/8" | 0.472" | 0.335" | 0.925" | 1/2" | 0.026 lbs |
| DOT-BRMC-0404 | 1/4" | 0.165" | 1/4" | 0.472" | 0.512" | 1.024" | 9/16" | 0.044 lbs |
| DOT-BRMC-0406 | 1/4" | 0.165" | 3/8" | 0.472" | 0.512" | 1.063" | 11/16" | 0.074 lbs |
| DOT-BRMC-0602 | 3/8" | 0.244" | 1/8" | 0.630" | 0.335" | 1.161" | 11/16" | 0.053 lbs |
| DOT-BRMC-0604 | 3/8" | 0.244" | 1/4" | 0.630" | 0.512" | 1.299" | 11/16" | 0.067 lbs |
| DOT-BRMC-0606 | 3/8" | 0.244" | 3/8" | 0.630" | 0.512" | 1.043" | 11/16" | 0.063 lbs |
| DOT-BRMC-0608 | 3/8" | 0.244" | 1/2" | 0.630" | 0.669" | 1.240" | 7/8" | 0.133lbs |
| DOT-BRMC-0804 | 1/2" | 0.362" | 1/4" | 0.787" | 0.512" | 1.406" | 13/16" | 0.089 lbs |
| DOT-BRMC-0806 | 1/2" | 0.362" | 3/8" | 0.787" | 0.512" | 1.209" | 13/16" | 0.077 lbs |
| DOT-BRMC-0808 | 1/2" | 0.362" | 1/2" | 0.787" | 0.669" | 1.248" | 7/8" | 0.112 lbs |
| DOT-BRMC-1006 | 5/8" | 0.433" | 3/8" | 0.925" | 0.512" | 1.555" | 1" | 0.156 lbs |
| DOT-BRMC-1008 | 5/8" | 0.433" | 1/2" | 0.925" | 0.669" | 1.496" | 1" | 0.141 lbs |
| DOT-BRMC-1208 | 3/4" | 0.559" | 1/2" | 1.043" | 0.669" | 1.791" | 1-1/16" | 0.191 lbs |
| DOT-BRMC-1212 | 3/4" | 0.559" | 3/4" | 1.043" | 0.669" | 1.535" | 1-1/16" | 0.197lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
