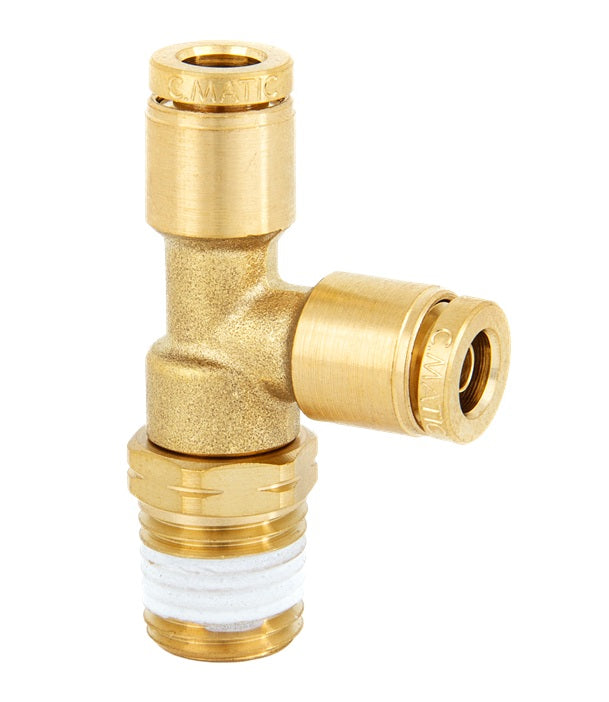

DOT-BRMBTS-0406 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRMBTS Series | DOT Air Brake Push-to-Connect Swivel Fitting | Tee | 1/4" Tube OD x 3/8" Male NPTF Branch | Brass | (Pack of 25)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Swivel Fitting | DOT-BRMBTS Series | Tee | Male Push-to-Connect x Male NPTF Branch
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $239.21 |
| 15–29 | $216.31 |
| 30+ | $190.86 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD (in) |
Tube* ID (in) |
D1 NPTF (in) |
D2 (in) |
L1 (in) |
L2 (in) |
L3 (in) |
HEX (mm) |
Weight Each (lbs) |
| DOT-BRMBTS-0402 | 1/4" | 0.165" | 1/8" | 0.472" | 0.335" | 0.835" | 1.850" | 1/2" | 0.064 lbs |
| DOT-BRMBTS-0404 | 1/4" | 0.165" | 1/4" | 0.472" | 0.512" | 1.031" | 1.850" | 9/16" | 0.075 lbs |
| DOT-BRMBTS-0406 | 1/4" | 0.165" | 3/8" | 0.472" | 0.512" | 1.051" | 1.850" | 11/16" | 0.091 lbs |
| DOT-BRMBTS-0604 | 3/8" | 0.244" | 1/4" | 0.630" | 0.512" | 1.122" | 2.126" | 11/16" | 0.134 lbs |
| DOT-BRMBTS-0606 | 3/8" | 0.244" | 3/8" | 0.630" | 0.512" | 1.122" | 2.126" | 11/16" | 0.135 lbs |
| DOT-BRMBTS-0608 | 3/8" | 0.244" | 1/2" | 0.630" | 0.669" | 1.339" | 2.126" | 7/8" | 0.178 lbs |
| DOT-BRMBTS-0804 | 1/2" | 0.362" | 1/4" | 0.787" | 0.512" | 1.260" | 2.339" | 13/16" | 0.213 lbs |
| DOT-BRMBTS-0806 | 1/2" | 0.362" | 3/8" | 0.787" | 0.512" | 1.260" | 2.339" | 13/16" | 0.201 lbs |
| DOT-BRMBTS-0808 | 1/2" | 0.362" | 1/2" | 0.787" | 0.669" | 1.437" | 2.339" | 7/8" | 0.228 lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
