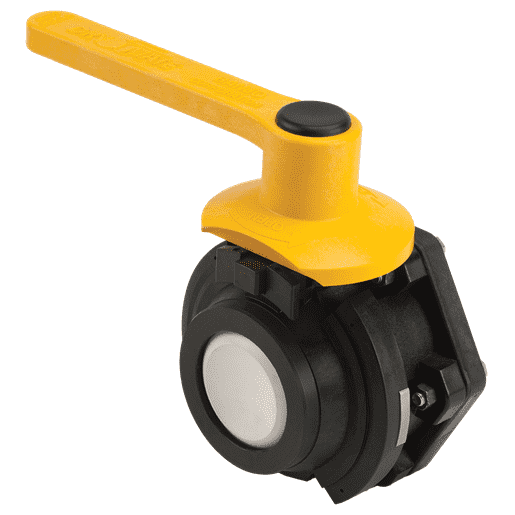

DM300AFP by Banjo | Dry-Mate® Dry Disconnects | 3" Full Port Male x 3" Female NPT Threads with FKM (Viton) Seals | Opening Thru Ball: 3" | 150 PSI | Polypropylene

DM300AFP by Banjo | Dry-Mate® Dry Disconnects | 3" Full Port Male x 3" Female NPT Threads with FKM (Viton) Seals | Opening Thru Ball: 3" | 150 PSI | Polypropylene

Sale price$348.79

Banjo Dry Disconnects - 3" Dry-Disconnect - Full Port - Polypropylene
Buy More, Save More!
Quantity Price Each
5–14 $327.86
15–29 $296.47
30+ $261.59
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Male Dry-Mate Dry Disconnect
Material(s):
  • Polypropylene
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
Features:
  • Dry-Mate Patented
  • Lightweight
  • Unrestricted 3" flow
  • Minimal fluid spillage
  • Easy to use
  • Economical
  • Reduces risk of exposure
  • Wide range of chemical resistance
  • Cannot be uncoupled in open position
  • Spillage Data: 3" = 20 ml
  • User friendly: Operating a Banjo Dry-Mate is simple. The handles interlock making it easy to identify which handle opens or closes first. No guessing involved! The two Dry-Mate halves couple together with cam levers for positive engagement.
  • Design: The Banjo Dry-Mate is designed for safe and easy spill free connections. The "double ball" design allows maximum flow, while the cam lever style of connection is the most recognized fluid connector.

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM300AFP 3" FP Male x 3" Female NPT Threads w/ FKM (viton type) Seals 150 PSI 3" 3"
DM300DFP 3" FP Female x 3" Female NPT Threads w/ FKM (viton type) Seals 300 PSI 3" 3"

Replacement Parts for DM300AFP
Item Part Number Description Quantity Required
1 DM35254M Male Body 1
2 V25060 Valve Stem Thrust Bearing 2
3 DM35255 Ball 1
4 VS25151C Stem w/O-ring Grooves 1
5 A020V #20 O-Ring 2
6 DM35258 Ball Seat 1
7 V35265 Body O-Ring FKM (viton type) 1
8 DM35288M Handle Button 1
9 DM35281 Button Spring 1
10 DM35153M Handle 1
13 V25502 3/4" Cap Plug 1
14 V35264 End Plate 1
15 V35258A Ball Seat 1
16 V20010SS 3/8" - 16 x 2" HHCS 6
17 V20018 3/8" Lockwasher 6
18 V20019 3/8" Hex Nut 6
20 DP02063 #2 x 5/8" Type U Drive Screw 4
21 DM300CAP Cap 1

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
