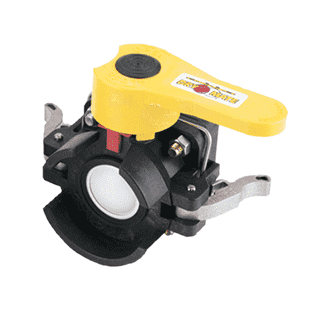

DM150DB by Banjo | Dry-Mate® Dry Disconnects | 1-1/2" Female x FPT BSP | Opening Thru Ball: 1-1/2" | 100 PSI | Polypropylene
Banjo

DM150DB by Banjo | Dry-Mate® Dry Disconnects | 1-1/2" Female x FPT BSP | Opening Thru Ball: 1-1/2" | 100 PSI | Polypropylene

Sale price$252.50

Banjo Dry Disconnects
1-1/2" Dry-Disconnect - Polypropylene

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Female BSPP
  • 1-1/2in Female Dry-Mate Dry Disconnect
Material(s):
  • Polypropylene
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Dry-Mate Patented
  • Lightweight
  • Unrestricted 1-1/2" flow
  • Minimal fluid spillage
  • Easy to use
  • Economical
  • Reduces risk of exposure
  • Wide range of chemical resistance
  • Cannot be uncoupled in open position
  • Spillage Data: 1-1/2" = 2 ml and 2" = 2 ml
  • User friendly: Operating a Banjo Dry-Mate is simple. The handles interlock making it easy to identify which handle opens or closes first. No guessing involved! The two Dry-Mate halves couple together with cam levers for positive engagement.
  • Design: The Banjo Dry-Mate is designed for safe and easy spill free connections. The "double ball" design allows maximum flow, while the cam lever style of connection is the most recognized fluid connector.
  • Comes complete with dust covers to protect balls and seals when not in use. Lanyard included
Manuals:
Diagram:
Part Number End Type Max PSI Pipe Size Opening Thru Ball
Male Dry-Mate
DM150A 1-1/2" Male x FPT NPT 100 PSI 1-1/2" 1-1/2"
DM150AB 1-1/2" Male x FPT BSP w/ FKM Seals 100 PSI 1-1/2" 1-1/2"
Female Dry-Mate
DM150D 1-1/2" Female x FPT NPT 100 PSI 1-1/2" 1-1/2"
DM150DB 1-1/2" Female x FPT BSP 100 PSI 1-1/2" 1-1/2"
Replacement Parts for DM150A & DM200A
Item Part Number Description Quantity Required
2 VS20151 Stem 1
3 V20257B 1½" Female BSP End Plate (DM150ABE) 1
4 V20060* Thrust Bearing PTFE 2
5 V20021 Handle Flat Washer 1
6 V20020 Handle Bolt 1
7 V20353C Handle Plug 1
8 V21204V* FKM (viton type) Body O-Ring 1
10 V20019 3/8" 16 SS Hex Nut 4
11 V20018 3/8" Lock Washer 4
12 DB20258* Seat PTFE 4
13 DB20255* Ball 1
14 DM20153M Male Handle 1
14 DB20153M Low Profile Handle 1
15 DB20288* Anti-Rotation Button 1
16 DB20290* FKM (viton type) Face Seal 1
16 DM20295A EPDM Face Seal 1
16 DM20296 Kalrez® Face Seal 1
17 DB20294 Valve Insert 2
18 DM20300 Cam 2
19 V20258A* End Plate Seat 1
20 DB20281 Button Spring 1
21 DM200CAP Dust Cap 1
22 DM20265 Spacer O-Ring 2
23 200P Pin 1
Not Shown V20207A Lanyard 1
Not Shown DM20200A Repair Kit 1

* Is included in Repair Kit
