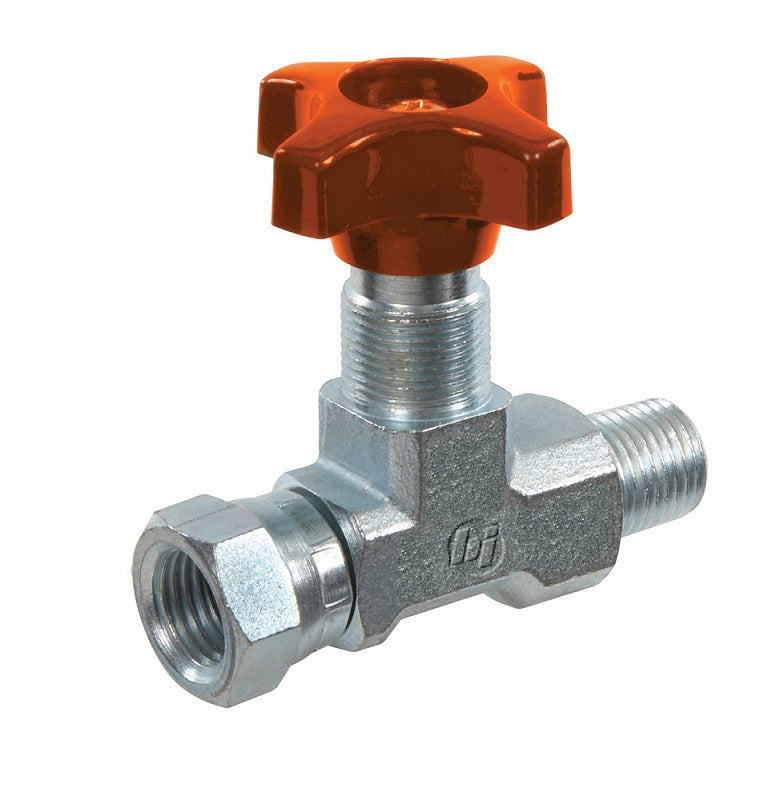

DGIV1404-04-PM by Brennan Inc. | -04 Gauge Isolator Valve | Straight | 1/4" NPT with Panel Mount Nut

DGIV1404-04-PM by Brennan Inc. | -04 Gauge Isolator Valve | Straight | 1/4" NPT with Panel Mount Nut

Sale price$46.75

Brennan Inc.
Test Point Fittings: Gauge Isolator Valve - Needle Valve Style
Buy More, Save More!
Quantity Price Each
10–39 $43.95
40–79 $39.74
80+ $35.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight
Part Number Thread X
Female		 Thread Y
Male		 B C D E F G H L M N P S Hex Weight
DGIV1404-04-PM 1/4 NPT 1/4 NPT 0.51"
13mm		 0.22"
5.6mm		 0.78"
20mm		 2.42"
61.5mm		 1.34"
34mm		 0.47"
12mm		 M15x1 2.09"
53mm		 0.59"
15mm		 0.08"
2mm		 0.33"
8.5mm		 1.30"
33mm		 0.71"
18mm		 0.13 lbs
DGIV1501-04-PM 1/4 NPT 1/4 NPT 0.53"
13.5mm		 0.22"
5.6mm		 0.87"
22mm		 1.57"
40mm		 1.34"
34mm		 0.39"
10mm		 M15x1 2.60"
66mm		 0.43"
11mm		 0.08"
2mm		 0.33"
8.5mm		 1.10"
28mm		 0.71"
18mm		 0.11 lbs

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
