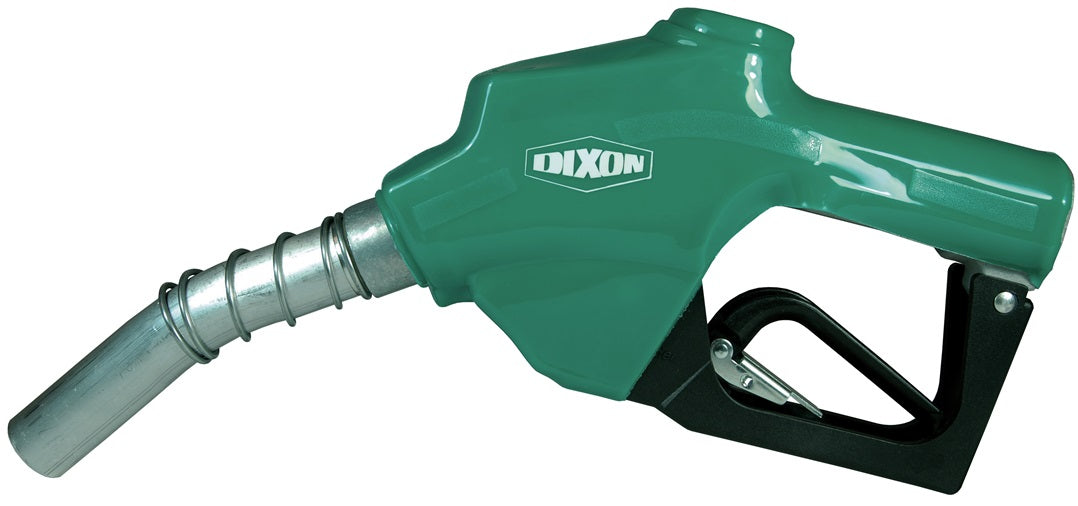

DFN100HF-NC FuelMaster™ by Dixon Valve | Diesel Nozzle | UL Listed | 1" NPT Inlet | 1-3/16" Spout Outlet | Aluminum

DFN100HF-NC FuelMaster™ by Dixon Valve | Diesel Nozzle | UL Listed | 1" NPT Inlet | 1-3/16" Spout Outlet | Aluminum

Sale price$223.36
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • High flow capacity.
  • Micro-touch valve provides smooth operation and exceptional flow control.
  • Roto-matic latch pin provides positive auto shut-off.
  • Pure PTFE packing eliminates stem leaks.
  • Easy to change 'locknut style' spout assembly.
  • Green scuff guard.
Construction:
  • Body and spout: aluminum.
  • Body caps: zinc.
  • Seals: FKM.
  • Poppet disk: FKM.
  • Stem packing: PTFE.
  • Hand-guard and trigger hold open clip: super tough nylon.
  • Trigger: steel.
  • Snap-on cover: plastic.
  • Scuff guard: vinyl.
Features Part Number NPT Inlet Spout
Outlet		 Approximate Flow
Rate at 20 PSI (GPM)
With trigger hold-open clip
Non-UL Listed nozzles		 DFN100HF 1" 1-3/16" 35
DFN100SF 1" 1-3/16" 45
With trigger hold-open clip
With 'no pressure, no flow' safety valve
UL Listed nozzle		 DFN100HF-NPNF 1" 1-3/16" 35
DFN100SF-NPNF 1" 1-3/16" 45
Without trigger hold-open clip
UL Listed nozzle		 DFN100HF-NC 1" 1-3/16" 35
DFN100SF-NC 1" 1-3/16" 45

Additional Product Data:

Brand:
  • Bayco
Shape:

45 Degree

Ends Configuration:
  • 1in Female NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
