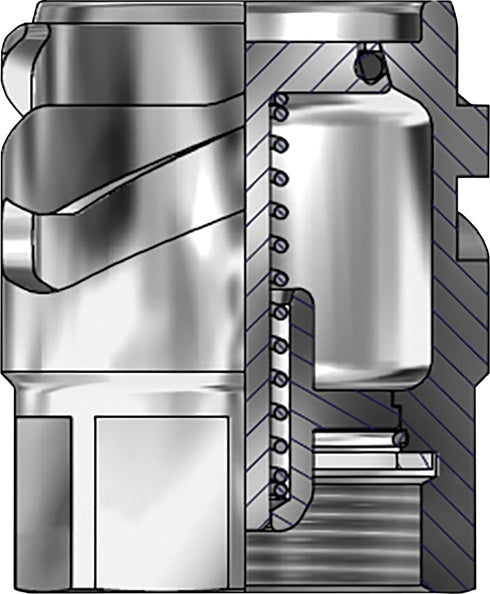

DDEA100SS by Dixon Valve | Dry Evotek Adapter | 1" Female NPT | 59.5mm Body Size | Stainless Steel
DDEA100SS by Dixon Valve | Dry Evotek Adapter | 1" Female NPT | 59.5mm Body Size | Stainless Steel
Dixon

DDEA100SS by Dixon Valve | Dry Evotek Adapter | 1" Female NPT | 59.5mm Body Size | Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Rotating the coupling 120° clockwise opens the valves where the pressure engagement between hose and tank unit ensures a strong connection.
  • Low connecting forces even against pressure.
  • Ergonomic handle on 1-1/2" and 2" sizes.
  • Good transmission ratio in the cam curve.
  • Wide range of chemical resistance due to high-quality material selection.
  • Minimized spillage during de-coupling.
Materials:
  • Body: stainless steel 1.4404.
  • Handle: PP polypropylene; 1" does not come with a handle.
  • O-rings: FPM, NBR, EPDM, FFKM.
  • Standard seal: FKM.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
  • PED 2014/68/EU 4.3.
  • ATEX 2014/34/EU Category 3G.
Dry Evotek Adapters | Female NPT
Part Number Female NPT Body Size
DDEA100SS 1" 59.5mm
DDEA150SS 1-1/2" 89mm
DDEA200SS 2" 106mm
Dry Evotek Couplers | Female NPT
Part Number Female NPT Body Size
DDEC100SS 1" 59.5mm
DDEC150SS 1-1/2" 89mm
DDEC200SS 2" 106mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
