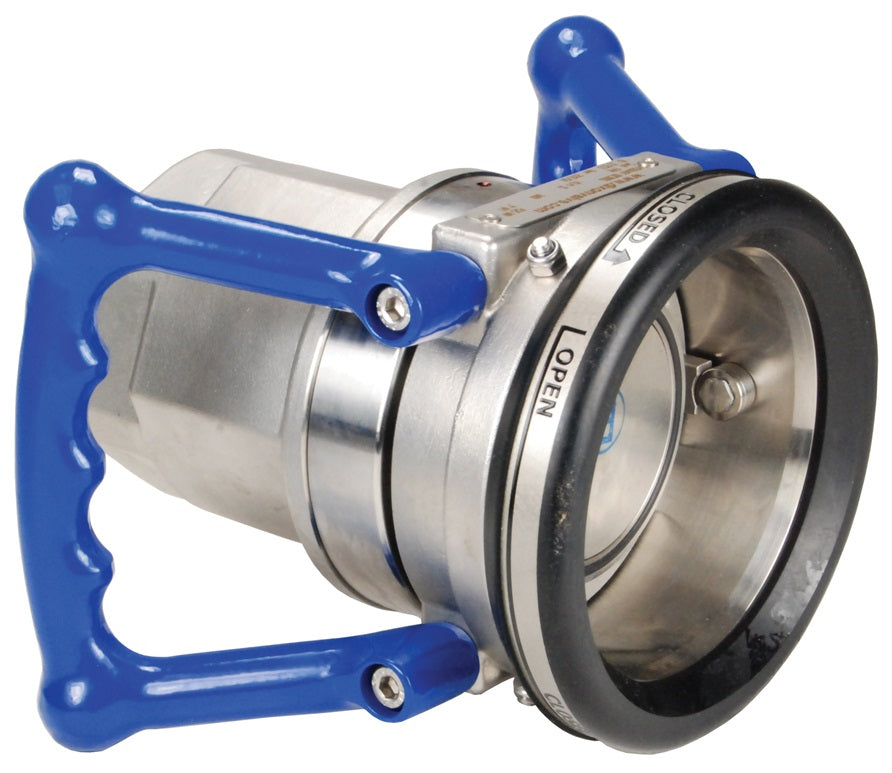

DDC300SS by Dixon Valve | MannTek Dry Disconnect Coupler | Hose Unit | 3" Female NPT | 119mm Body Size | 316 Stainless Steel
Dixon

DDC300SS by Dixon Valve | MannTek Dry Disconnect Coupler | Hose Unit | 3" Female NPT | 119mm Body Size | 316 Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Compatibility & Interchange Data:
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756.
Construction:
  • Standard seal supplied: FKM.
  • Stainless steel ball bearings.
  • All wetted parts are stainless steel.
  • 316 Stainless Steel Parts: Rollers are Hastelloy C276 on the stainless steel shaft.
  • Aluminum & Brass/Gunmetal Parts: Rollers are aluminum-bronze on the stainless steel shaft.
Features:
  • Coupler has built-in swivel.
  • Shaft journal in stainless steel embedded in PTFE to eliminate seizure.
  • The protective ring is a specially formulated, weather resistant and electrically conductive rubber compound.
  • Selectivity - to avoid product contamination, selective versions of the couplers and adapters are available. Contact Dixon for further information.
  • Easy to handle - push and turn - free flow, turn and pull - closed.
  • Time saving - no need to drain hoses or pipe systems.
  • Economical - no loss or spillage of liquids at connection or disconnection.
  • Safety - the valve cannot be opened until the unit is coupled.
  • Environmental friendly - accidental spillage eliminated when properly used.
  • Safe and reliable - due to rugged construction.
  • Product life - uncomplicated design and high quality materials ensures long product life.
Specifications:
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C
  • Working pressure is based on PSI at ambient temperature 70°F.
    • Aluminum: 230 PSI, up to 4"
    • Brass/Gunmetal1: 230 PSI, up to 4"
    • Stainless Steel: 360 PSI
Use:
  • Use with composite (Polyeten PE-HD 300) plugs for protection against corrosion; plugs withstand hot and cold environments.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Brass / Gunmetal*
Part Number		 Female
NPT		 Body Size
DDC075SS DDC075AL DDC075BR 3/4" 56 mm
DDC100SS DDC100AL DDC100BR 1" 56 mm
DDC150SS DDC150AL DDC150BR 1-1/2" 70 mm
DDC200SS DDC200BR 2" 70 mm
DDC300SS105 DDC300AL105 DDC300GM105 3" 105 mm
DDC300SS DDC300AL DDC300GM 3" 119 mm
DDC400SS DDC400AL DDC400GM 4" 164 mm
DDC600SS DDC600AL - 6" 238 mm

*1 Produced to U.S. government bronze specification G
