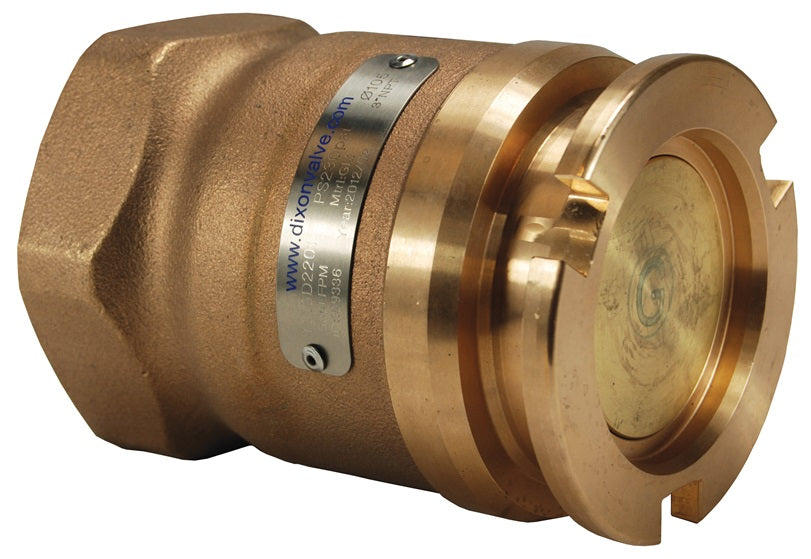

DDA300GM by Dixon Valve | MannTek Dry Disconnect Adapter | Tank Unit | 3" Female NPT x 119mm Body Size | Gunmetal
Dixon

DDA300GM by Dixon Valve | MannTek Dry Disconnect Adapter | Tank Unit | 3" Female NPT x 119mm Body Size | Gunmetal

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Compatibility & Interchange Data:
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756.
Construction:
  • Standard seal supplied: FKM (FPM).
  • Aluminum adapter: aluminum poppet, stainless steel internal parts.
  • Stainless steel adapter: stainless steel poppet, stainless steel internal parts.
  • Brass / gunmetal 1 adapter: brass poppet, brass and stainless steel internal parts.
Features:
  • Adapter is usually installed on the tank or manifold.
  • Conical valve seat reduces the risk for piston blow out.
  • PTFE bearing between the piston shaft and the piston guide eliminate the risk for seizure.
  • Easy to handle - push and turn - free flow, turn and pull - closed.
  • Time saving - no need to drain hoses or pipe systems.
  • Economical - no loss or spillage of liquids at connection or disconnection.
  • Safety - the valve cannot be opened until the unit is coupled.
  • Environmental friendly - accidental spillage eliminated when properly used.
  • Safe and reliable - due to rugged construction.
  • Product life - uncomplicated design and high quality materials ensures long product life.
Specifications:
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C.
  • Working pressure is based on PSI at ambient temperature 70°F.
    • Aluminum: 230 PSI, up to 4"
    • Brass/Gunmetal1: 230 PSI, up to 4"
    • Stainless Steel: 360 PSI
Use:
  • Use with composite (Polyeten PE-HD 300) caps for protection against corrosion; caps withstand hot and cold environments.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Brass / Gunmetal*
Part Number		 Female
NPT		 Body Size
DDA075SS DDA075AL DDA075BR 3/4" 56mm
DDA100SS DDA100AL DDA100BR 1" 56mm
DDA150SS DDA150AL DDA150BR 1-1/2" 70mm
DDA200SS DDA200AL DDA200BR 2" 70mm
DDA300SS105 DDA300AL105 DDA300GM105 3" 105mm
DDA300SS DDA300AL DDA300GM 3" 119mm
DDA400SS DDA400AL DDA400GM 4" 164mm
DDA600SS DDA600AL - 6" 238mm

*Produced to U.S. government bronze specification G
