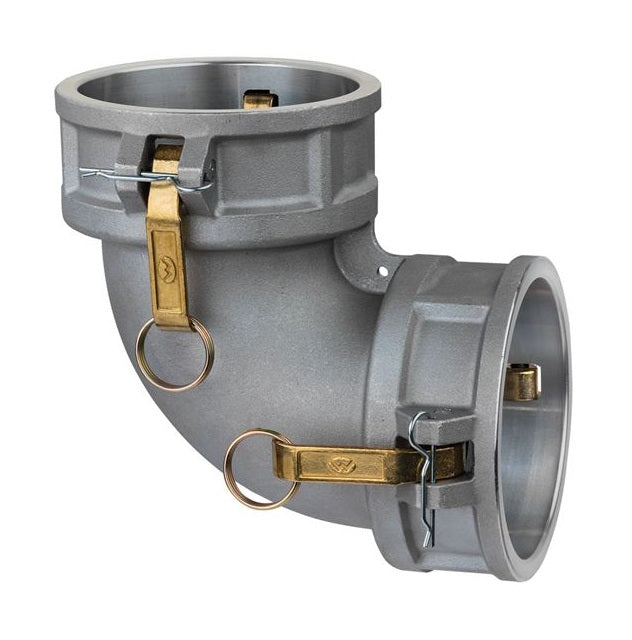

DD90-AL600 by Kuriyama | DD90-AL Series | Part DD | 90° Elbow | Cam & Groove Spool Coupler | 6" Coupler x 6" Coupler | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Spool Coupler | DD90-AL Series | Part DD | 90° Elbow | Coupler x Coupler | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $426.68 |
| 15–29 | $385.82 |
| 30+ | $363.13 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- Forged brass handles.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| DD90-AL200 | 2" | 250 PSI | B85 Grade 383 | 2.20 lbs |
| DD90-AL300 | 3" | 150 PSI | B85 Grade 383 | 3.50 lbs |
| DD90-AL400 | 4" | 150 PSI | B85 Grade 383 | 5.10 lbs |
| DD90-AL600 | 6" | 75 PSI | B85 Grade 383 | 10.50 lbs |
Product Data:
Series:
MAWP:
75
Shape:
90 Degree
Cam & Groove Type:
Type DD (Spool Coupler)
Ends Configuration:
Material(s):
Seal Material(s):
