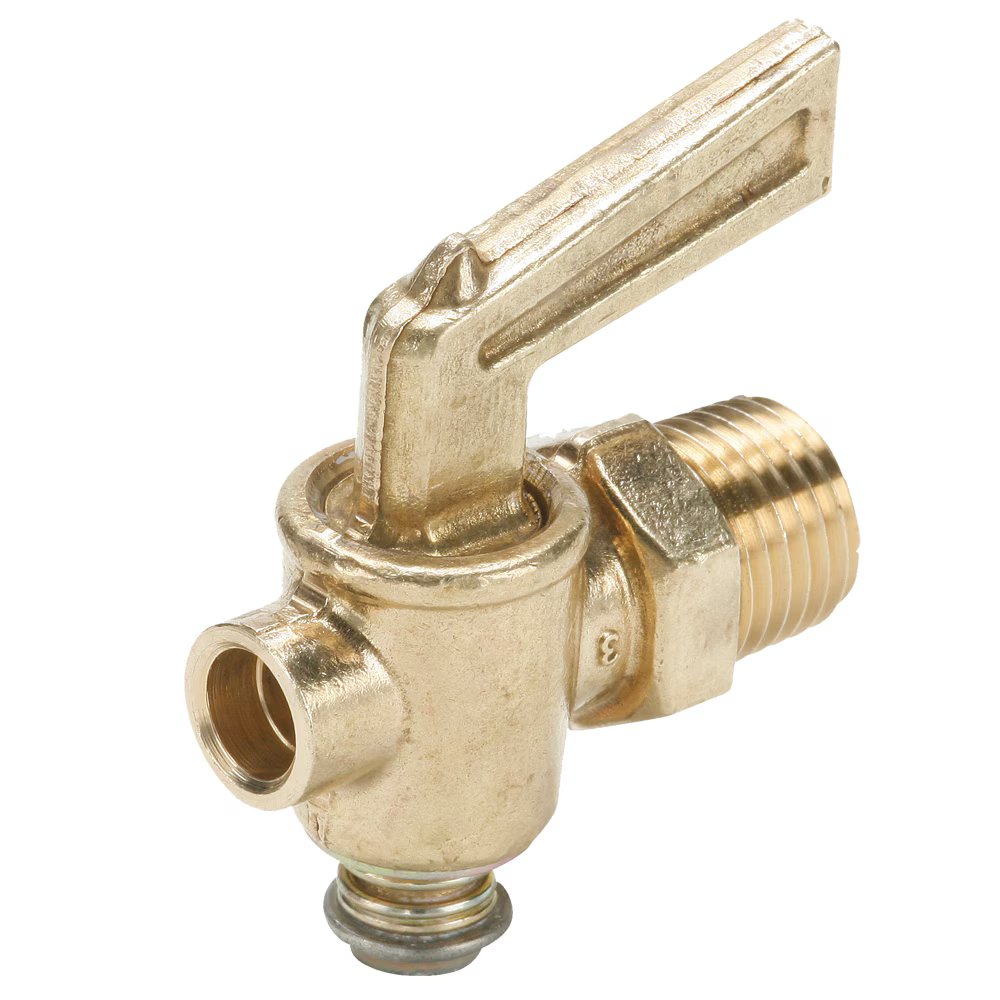

DC601-8 by Parker | Ground Plug Shutoff | 1/2" Male Pipe Thread | 2.29" Length | Straight | Brass | Pack of 5

DC601-8 by Parker | Ground Plug Shutoff | 1/2" Male Pipe Thread | 2.29" Length | Straight | Brass | Pack of 5

Sale price$246.39

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff DC601

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $231.61
30–59 $209.43
60+ $184.79
Discounts applied in cart/checkout.

Product Data:

Series:
  • DC601 Series
Shape:

Straight

Material(s):
  • Brass
Product Features:
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C)
  • V406P/V407P: -40° to +180° F ( -40° to +82.2° C)
  • Drain Cocks: -65° to +250° F (-53.8° to +121.1° C)
  • DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:
  • Ground Plug Shutoff: 30 PSI (2.0 bar)
  • Drain Cocks: Up to 150 PSI (10.3 bar)
Part Number Pipe Thread L M Flow Diameter (D)
DC601-2 1/8" 1.90" 1.40" .170"
DC601-4 1/4" 1.90" 1.52" .170"
DC601-6 3/8" 2.26" 1.74" .281"
DC601-8 1/2" 2.29" 1.82" .281"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
