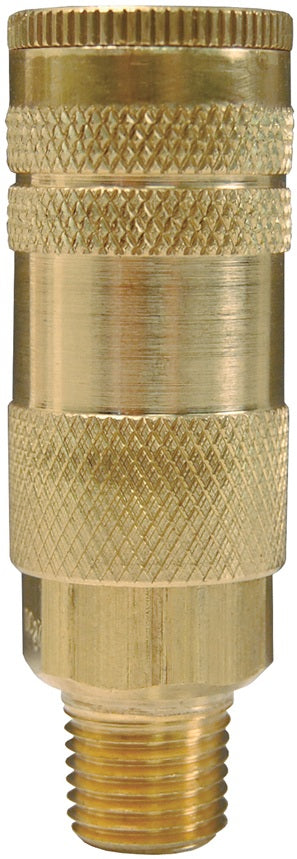

DC27 Air Chief by Dixon Valve | Pneumatic Lincoln Interchange Coupler/Socket | 1/4" Male NPT x 1/4" Body Size | Brass

DC27 Air Chief by Dixon Valve | Pneumatic Lincoln Interchange Coupler/Socket | 1/4" Male NPT x 1/4" Body Size | Brass

Sale price$24.76

Air Chief Lincoln Interchange Series Quick-Connect Couplers On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Buy More, Save More!
Quantity Price Each
10–39 $23.27
40–79 $21.05
80+ $18.57
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female Lincoln QD Interchange
  • 1/4in Male NPT
Material(s):
  • Brass
Compatibility & Interchange:
  • Interchangeable with the Lincoln Interchange long stem series.
Features:
  • Couplers shut off when disconnected
  • Couplers are semi-automatic
Specifications:
  • Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C).
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C).
Safety Notes:
  • Pressure rating given at ambient temperature 70 °F (21 °C).
Pneumatic Lincoln Interchange Coupler/Socket
Part Number Coupling Type Material Body Size Hose ID Flow Rating
at 100 PSI
DC28 Socket/Female Brass 1/4" 1/4" Female NPT 37 CFM
DC27 Socket/Female Brass 1/4" 1/4" Male NPT 37 CFM
Pneumatic Lincoln Interchange Plug
Part Number Coupling Type Material Body Size Thread Flow Rating
at 100 PSI
DCP28 Plug/Male Steel 1/4" 1/4" Female NPT 37 CFM
DCP27 Plug/Male Steel 1/4" 1/4" Male NPT 37 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
